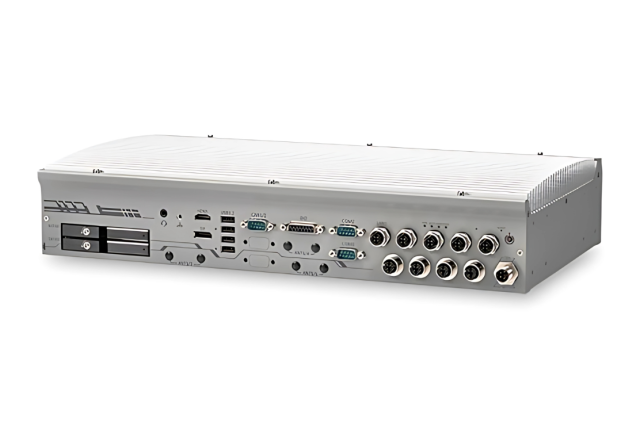

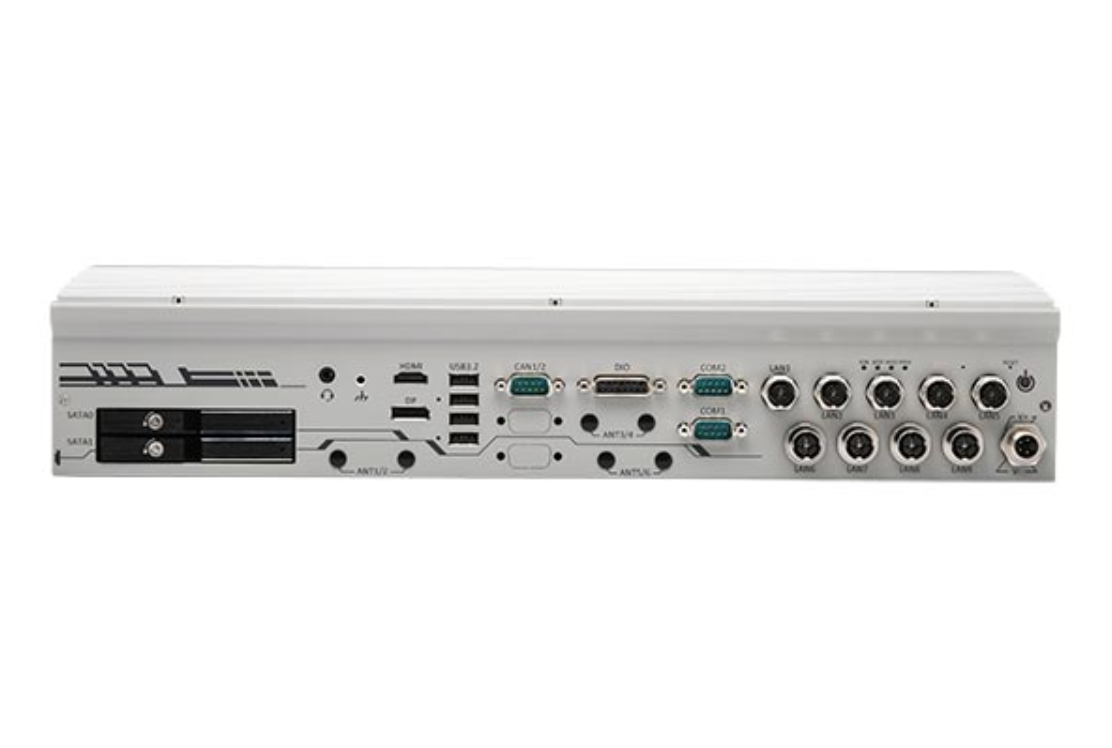

GT-92RL-H
EN50155 & EN45545 19" rack mount railway GPU computer including NVIDIA® 2000 ADA, supporting Intel® 14th/ 13th / 12thGen Core™ processor, 43V to 160V DC input with isolation
Introduction
GT-92RL-H is a 19" rack mount, wide-temperature, fanless GPU computer that delivers excellent CPU and GPU performance by leveraging Intel® 14th/ 13th/ 12th-Gen platform and NVIDIA® RTX 2000 ADA. Thanks to its high-performance and flexible camera expansion, GT-92RL-H is ideal for multi-camera applications requiring real time responses, e.g., pantograph and track gauge monitoring, video analytics in train carriages, track object identification, and tunnel inspection, etc.
GT-92RL-H has a proven thermal design to guarantee reliable system operation from -40°C to 55°C. It features a passive-cooling design for the system and 70W GPU card. Supporting eight GigE cameras (or IP cameras) and four USB3 cameras, GT-92RL-H is ideal for various vision-based AI applications on rolling stocks with its 110V DC input design and EN 50155/ EN 45545 certifications. It also provides flexible data storage options, including one M.2 2280 Gen4x4 NVMe providing up to 7000 MB/s extreme read/write speeds and two 2.5" SATA HDD/SSD to expand storage capacity.
With performance enhancements and comprehensive I/Os, GT-92RL-H is the perfect edge AI inference platform for rolling stock applications.
- Compliant with EN 50155 mandatory tests and EN 45545-2
- Intel® 14th/ 13th/ 12th-Gen LGA1700 processor (35W/65W)
- Fanless GPU computer with NVIDIA® RTX 2000 ADA
- 2U 19" chassis for rack-mount or wall-mount
- 43V to 160V wide-range DC input via M12 K-Coded connector
- 9x GbE ports via M12 X-Coded connectors
- 1x M.2 2280 M key with PCIe-Gen 4x4 for NVMe storge
- 2x full-size mPCIe sockets for MVB modules
- -40°C to 55°C wide-temperature fanless operation
Specifications
| System Core | |||
|---|---|---|---|
| Processor | Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)[1][2] - Intel® Core™ i9-14900/ i9-14900T - Intel® Core™ i7-14700/ i7-14700T - Intel® Core™ i5-14500/ i5-14400/ i5-14500T - Intel® Core™ i3-14100/ i3-14100T |
||
| Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) - Intel® Core™ i9-13900E/ i9-13900TE - Intel® Core™ i7-13700E/ i7-13700TE - Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE - Intel® Core™ i3-13100E/ i3-13100TE |
Support Intel® 12th-Gen Core™ CPU(LGA1700 socket, 35W/ 65W TDP) - Intel® Core™ i9-12900E/ i9-12900TE - Intel® Core™ i7-12700E/ i7-12700TE - Intel® Core™ i5-12500E/ i5-12500TE - Intel® Core™ i3-12100E/ i3-12100TE - Intel® Pentium® G7400E/ G7400TE - Intel® Celeron® G6900E/ G6900TE |
||
| Chipset | Intel® R680E platform controller hub | ||
| Graphics | Integrated Intel® UHD Graphics 770 (32EU) | ||
| Acceleration GPU | NVIDIA® RTX 2000 ADA | ||
| Memory | Up to 64 GB ECC/ non-ECC DDR5 4800 SDRAM (two SODIMM slots) | ||
| AMT | Supports Intel vPro/ AMT 16.0 | ||
| TPM | Supports dTPM 2.0 | ||
| I/O Interface | |||
| Ethernet Port | 1x GbE Ethernet by Intel I219-LM via M12 x-coded connector (with WoL) 8x GbE Ethernet by Intel I350-AM4 via M12 x-coded connectors |
||
| POE+ | None | ||
| CAN Bus | 2x isolated CAN 2.0 port, supporting SocketCAN in Linux | ||
| USB | 4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors | ||
| Video Port | 1x HDMI 1.4, supporting 4096×2160 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
||
| Serial Port | 2x isolated 3-wire RS232/ 422/ 485 port (COM1/ COM2) | ||
| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO | ||
| Audio | 1x 3.5 mm jack for mic-in and speaker-out | ||
| Storage interface | |
|---|---|
| SATA HDD | 2x hot-swappable HDD trays for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 |
| M.2 | 1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD |
| Internal Expansion Bus | |
| Mini PCI Express | 2x full-size mini PCI Express socket with SIM slot |
| Power Supply | |
| DC Input | 43V to 160V DC input (M12 K-coded) |
| Mechanical | |
| Dimension | 440mm (W) x 250mm (D) x 88mm (H) (excl. rack-mount bracket) |
| Weight | 8.0 kg |
| Mounting | Rack-mounting (optional) and wall-mounting (optional) |
| Environmental | |
| Operating temperature | with 35W CPU -40°C ~ 55°C [1] with 65W CPU -40°C ~ 35°C [1] |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 10% ~ 90% , non-condensing |
| Vibration | EN 50155:2017/ IEC 61373, Category I, Class B - Body mounted |
| Shock | EN 50155:2017/ IEC 61373, Category I, Class B - Body mounted |
| EMC | EN 50121 (EN 50155 EMC) CE/FCC Class A, according to EN 55032 & EN 55035 |
| EN 50155 | All mandatory sections of EN 50155:2017 (110V) |
| EN 45545 | EN 45545-2 (Fire protection on railway vehicles) |
[1] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
