Nuvo-2822
Intel® Alder Lake N Compact Expansion Box-PC with 2x PCIE and 2x PCI slots
Introduction

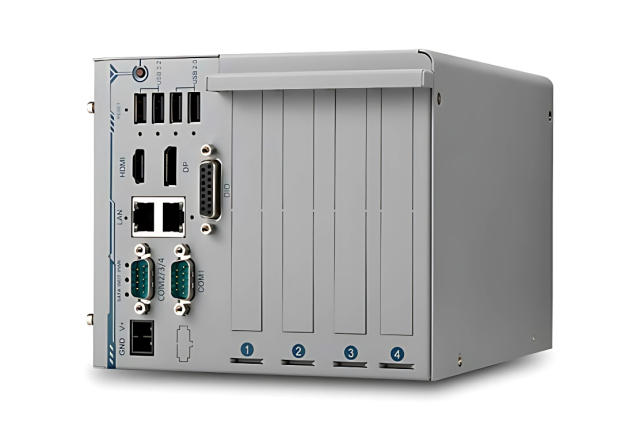

Nuvo-2822 is a compact expansion box PC powered by an Intel® Alder Lake N CPU featuring two PCIe and two PCI slots. The expansion slots are designedto support various frame grabbers, motion control cards, COM port expansion cards, and data acquisition cards.
With up to five times the performance boost compared to our previous Nuvo-2400 series, the new Nuvo-2822 can efficiently process vast amounts of data acquired from extensive I/O interfaces in real time. It features two Ethernet ports with I210-IT controllers, and two USB 3.2 Gen 2 ports with screw lock mechanisms to connect and secure industrial cameras for machine vision applications. Furthermore, the Nuvo-2822 supports 8-channel isolated DIO and four COM ports to communicate with and control various industrial sensors, indicators, motors, and actuators.
The system also features a unique "Superpower Saving Mode" to minimize energy consumption when the system is in standby (S4/S5) mode, significantly reducing electricity usage. Thanks to its compact dimensions, it can be deployed in restricted spaces or small cabinets. With support for versatile PCIe and PCI expansion cards, it is ideal for industrial control and machine automation applications.
- Intel® Alder Lake N97 processor 12W with 4 E-Cores
- 2x PCIe Slots and 2 PCI slots
- 2x GbE, 2x USB3.2 and 2x USB2.0 ports
- 1x M.2 2280 for storage, 1x RS232/422/485, 3x RS232
- 1x DP++ & 1x HDMI 1.4b
- 4-CH isolated DI + 4-CH isolated DO
- 12 to 24V DC input, Ultra-Low Power Consumption during shutdown states
Specifications
| System Core | |
|---|---|
| Processor | Intel® Alder Lake N97 processor (4C/4T, 2.0 /3.6 GHz, 12W TDP) |
| Graphics | Integrated Intel® UHD Graphics with 24EUs |
| Memory | Up to 16 GB DDR5-4800 SDRAM (one SODIMM socket) |
| TPM | Supports dTPM 2.0 |
| I/O Interface | |
| Ethernet Port | 2x Gb Ethernet by Intel I210-IT (1x with WoL) |
| USB3.2 | 2x USB 3.2 Gen2 ports with screw-lock |
| USB2.0 | 2x USB 2.0 ports with screw-lock |
| Video Port | 1x DP++, Supporting 4096 x 2160 resolution 1x HDMI1.4b, Supporting 3840 x 2160 30Hz |
| Serial Port | 1x Software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/3/4) |
| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO |
| Storage Interface | |
| M.2 SATA | 1x M.2 2280 SATA interface |
| Internal I/O Interface | |
| PCI Express | 1x PCIe x4 slot @ Gen3, 4-lanes 1x PCIe x4 slot @ Gen3, 1-lanes |
| PCI | 2x 33MHz/ 32-bit 5V PCI slots |
| Power Supply | |
|---|---|
| DC Input | 1x 2-pin pluggable terminal block for 12 to 24V DC input |
| Remote Ctrl. & LED Output | 1x 10-pin (2x5) wafer connector for remote on/off control and status LED output |
| Mechanical | |
| Dimension | 164.6mm (W) x 214.6mm (D) x 135.6mm (H) |
| Weight | 2.3 kg |
| Mounting | Wall-mount (Optional) |
| Fan | Optional 80mm x 80mm fan for system heat dissipation |
| Environmental | |
| Operating temperature | With FAN Kit -10°C ~ 70°C [1]/[2] Without FAN Kit -10°C ~ 60°C [1] |
| Storage temperature | -40°C ~85°C |
| Humidity | 10% ~ 90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 |
| Shock | MIL-STD-810H, Method 516.8, Procedure I |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
[1] For sub-zero and over 60°C operating temperature, a wide temperature Solid State Disk (SSD) is required.
[2] The optional fan kit is recommended for operating at ambient temperatures higher than 60°C.
