POC-40 Series
Intel® Elkhart Lake Atom® x6211E/ x6413E Extreme-compact Embedded Computer with 2x GbE and 2x USB 3.1
Introduction

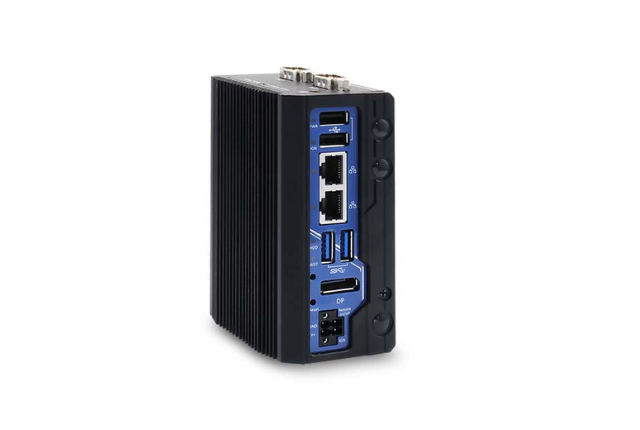

POC-40 Series is an extremely compact fanless computer with dimensions measuring just 52 x 89 x 112 mm. It features Elkhart Lake Atom® processor and is designed for space-restricted applications such as factory data collection, rugged edge computing and mobile gateway.
Utilizing Intel's 10nm process technology, the new Elkhart Lake Atom® x6211E and x6413E processor can deliver up to 1.8 times the performance boost over its previous generation. In comparison to POC-200, POC-40 provides 1.9 times computing performance at only half the size. It features generic I/O functions, such as two Gigabit Ethernet ports, four USB 3.1 Gen1/ 2.0 ports, four COM ports and optional isolated digital I/Os for industrial communication and control. In addition, by adopting dedicated M.2 B key and E key slots, the POC-40 can fully harness the bandwidth of 5G and WiFi 6 wireless communications to provide wide-area coverage and real-time data transmission for industrial and mobile gateway applications.
With a similar footprint as a PICO-ITX motherboard, Neousys' POC-40 is perfect for projects that require above par performance in an extremely compact package. Ideal for both edge computing and gateway applications, it is a low power consumption and lightweight fanless computer that offers wide-temperature operation for harsh environments.
- Intel® Elkhart Lake Atom® x6211E/ x6413E processor
- 52 x 89 x 112 mm extremely compact form factor
- Rugged -25°C to 70°C fanless wide-temperature operation
- Two GigE ports, two USB 3.1 Gen1 ports and two USB2.0 ports
- M.2 2280 M key SATA storage interface
- One M.2 B key socket supporting 5G/ 4G 3042/ 3052 modules

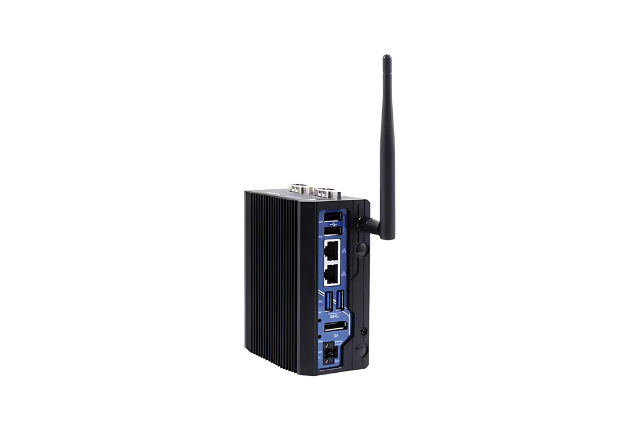

- One M.2 E key socket for WiFi 5/ WiFi 6 modules
- One COM port with RS-232/ 422/ 485 modes and three RS-232 COM ports
Specification
| POC-40+ | POC-40 | |
| System Core | ||
|---|---|---|
| Processor | Intel® Atom® x6413E quad-core 1.5GHz/ 3.0GHz 9W processor | Intel® Atom® x6211E dual-core 1.3GHz/ 3.0GHz 6W processor |
| Graphics | Integrated Intel® UHD Graphics | |
| Memory | Up to 32 GB DDR4-3200 SDRAM (one SODIMM slot) | |
| TPM | Supports fTPM 2.0 | |
| Panel I/O Interface | ||
| Ethernet | 2x Gigabit Ethernet ports by Intel® I210 GbE controllers | |
| USB 3.1 | 2x USB 3.1 Gen1 (5 Gbps) ports | |
| USB 2.0 | 2x USB 2.0 ports | |
| Video Port | 1x DisplayPort connector, supporting 4096 x 2160 resolution @ 60Hz | |

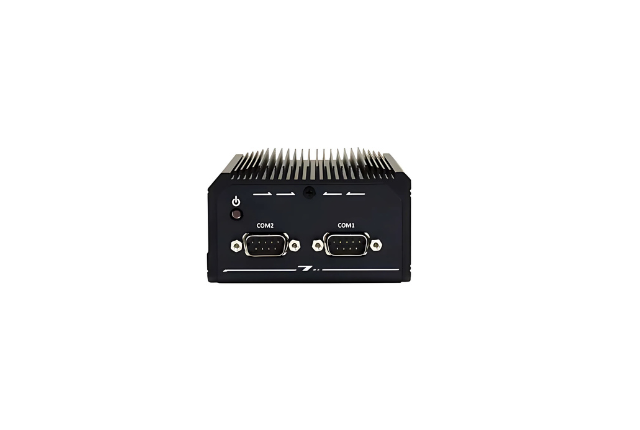

| Serial Port | 1x software-programmable RS232/ 422/ 485 port (COM1) 1x isolated RS-422/485 port(COM2) |
1x software-programmable RS232/ 422/ 485 port (COM1) 3x 3-wire RS-232 ports (COM2/COM3/COM4) |
| Isolated Digital I/O | 4-ch isolated digital input and 4-ch isolated digital output | Optional 4-ch isolated digital input and 4-ch isolated digital output |
| Storage Interface | ||
| M.2 M key | 1x M.2 2280 M key SATA interface | |
| POC-40+ | POC-40 | |
| Internal Expansion Bus | ||
|---|---|---|
| M.2 B key | N/A | 1x M.2 3042/ 3052 B key socket with internal SIM socket for 4G/5G module |
| M.2 E key | 1x M.2 2230 E key socket for WiFi 5/ WiFi 6 module | |
| Mini-PCIe | 1x full-size mini PCI Express socket with internal SIM socket | N/A |
| Power Supply | ||
| DC Input | 1x 4-pin pluggable terminal block for 12-20V DC input with optional ignition power control | |
| Remote Control | 1x 4-pin pluggable terminal block for remote control | |
| Mechanical | ||
| Dimension | 52 mm (W) x 89 mm (D) x 112 mm (H) | |
| Weight | 0.6kg | |
| Mounting | DIN-rail mount (standard) or Wall-mount (optional) | |
| Environmental | ||
| Operating Temperature | -25°C ~ 60°C | -25°C ~ 70°C |
| Storage Temperature | -40°C ~85°C | |
| Humidity | 10%~90% , non-condensing | |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 | |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II | |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 | |
