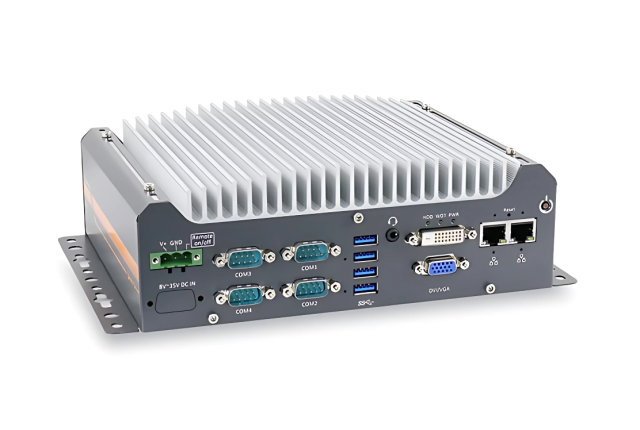

Nuvo-7501
Intel® 9th/ 8th -Gen Core™ i7/i5/i3 Compact Fanless Computer with 2x GbE and 4x COM Ports
Introduction
Nuvo-7501 is a cost-effective, compact and yet powerful fanless embedded computer with a 255 x 173 x 76 mm footprint. Powered by an Intel® 9th/ 8th-Gen Core™ hexa/ octa core CPU, it offers more than 50% computation performance improvement over the previous generation.
Nuvo-7501 is designed to be simple and compact while retaining essential elements of a rugged embedded fanless solution. It features I/Os such as 2x GbE, 4x USB 3.1 Gen1 and 4x COM ports for common industrial applications. In addition to the M.2 2280 SATA slot (SATA signal) and can also support a 2.5" SSD/ HDD or a 3.5" HDD. Its' derivative model, Nuvo-7505D, offers isolated DIO and isolated COM, which can protect the controller against ground loops in harsh environments.
The Nuvo-7501 has retained quality materials all Neousys systems utilize and the design flow/ stringent test procedures it must endure. It is a fanless embedded platform that has hit the sweet spot in terms of cost, size and performance. Nuvo-7501 is an ideal fanless embedded solution for various industrial applications.
- Compact 255 x 173 x 76 mm footprint
- Intel® 9th/ 8th-Gen Core™ 35W LGA1151 CPU
- Rugged, -25°C to 60°C fanless operation
- 2x GbE and 4x USB 3.1 Gen1
- 2x RS-232/422/485 and 2x RS-232 ports
- VGA + DVI dual display outputs
- Supports 1x M.2 2280 SSD (SATA signal)
- Supports 1x 3.5" or 2.5" SATA HDD/ SSD
Product Highlights
- 9th/ 8th-Gen Core i CPU
Powered by Intel® 9th/ 8th-Gen Core™ processor running with advanced Intel® H310 chipset, The Nuvo-7501 fanless embedded computer provides outstanding performance for emerging high-end requirement than 6th & 7th generations.
- Wide Temperature Range Operation
The Nuvo-7501 fanless embedded computer has patented passive cooling thermal design that can effectively channel heat from heat sink and truly operate in wide temperature range from -25℃ to 60℃ while under 100% CPU loading.
Specifications
| System Core | |
|---|---|
| Processor | Supporting Intel® 8th/ 9th-Gen Core™ CPU (LGA1151 socket) - Intel® Core™ i7-8700*/ i7-8700T/ i7-9700E*/ i7-9700TE - Intel® Core™ i5-8500*/ i5-8500T/ i5-9500E*/ i5-9500TE - Intel® Core™ i3-8100*/ i3-8100T/ i3-9100E*/ i3-9100TE |
| Chipset | Intel® H310 platform controller hub |
| Graphics | Integrated Intel® UHD graphics 630 |
| Memory | Up to 32 GB DDR4 2666/ 2400 SDRAM (one SODIMM slot) |
| TPM | Supports fTPM 2.0 |
| I/O Interface | |
|---|---|
| Ethernet Port | 2x Gigabit Ethernet ports by I219 and I210 |
| USB | 4x USB 3.1 Gen1 (5 Gbps) ports |
| Video Port | 1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution |
| Serial Port | 2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Internal Expansion Bus | |
|---|---|
| Mini PCI-E | 1x full-size mini PCI Express socket |
| M.2 | 1x M.2 2242 B key socket with internal SIM socket |
| Storage interface | |
|---|---|
| SATA HDD | 1x internal SATA port for 3.5" HDD or 2.5" HDD/ SSD |
| M.2 | 1x M.2 2280 SATA interface |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8V to 35V DC input |
| Remote Ctrl. & LED Output | 1x 10-pin (2x5) pin header for remote on/off control and status LED output |
| Mechanical | |
|---|---|
| Dimension | 255mm (W) x 173 mm (D) x 76 mm (H) |
| Weight | 2.68 kg |
| Mounting | Wall-mount or optional DIN-Rail |
| Environmental | |
|---|---|
| Operating temperature | -25°C ~ 60°C ** |
| Storage temperature | -40°C ~85°C |
| Humidity | 10%~ 90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55024 |
* Due to thermal limitations, 65W CPUs will be configured to operate in 35W mode by default.
** For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
*** For i7 CPUs, thermal throttling may occur when sustained full-loading applied at 60°C ambient temperature.
