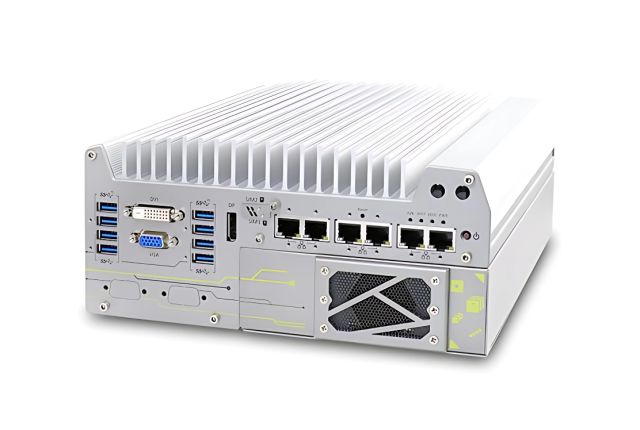

Nuvo-7164GC series
Ruggedized GPU Computing platform supporting NVIDIA® L4/ T4/ A2 and Intel® 9th/8th-Gen Core™ processor
Introduction
Nuvo-7164GC series are ruggedized AI inference platforms designed for advanced inference acceleration applications such as voice, video, image and recommendation services. It supports an NVIDIA® L4/ T4/ A2 GPU to provide up to 242 TFLOPS in FP16 and 485 TOPs in INT8 for real-time inference based on trained neural network model. In addition, it supports Intel® 9th/ 8th-Gen Core™ 6-core/ 8-core CPU and 64 GB DDR4-2666, offering great balance between CPU, GPU and memory performance.

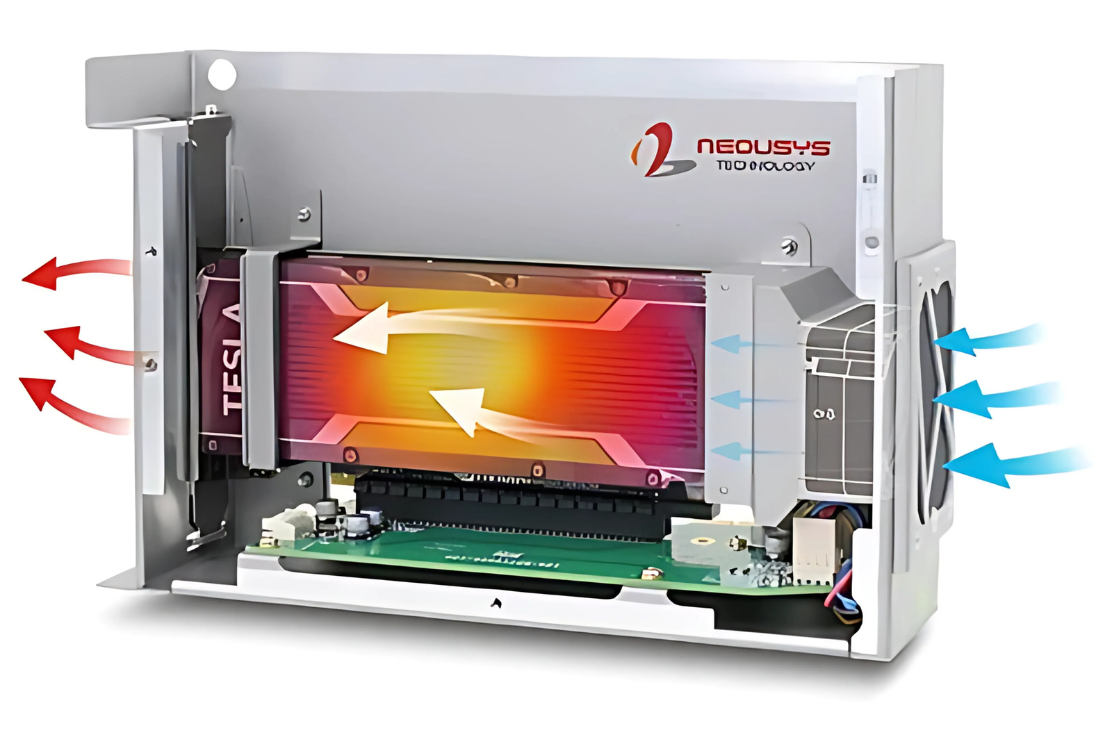

Thanks to Neousys' patented Cassette and air tunnel design, which guides the intake air to flow through the passive heat sink of NVIDIA® L4/ T4/ A2, Nuvo-7164GC is capable of effectively dissipating the heat generated by the GPU. This promising design guarantees system operation of up to 60°C ambient temperature with sustained 100% GPU loading.
Nuvo-7164GC also incorporates cutting-edge I/O technologies to boost overall system flexibility, functionality and performance. It has an M.2 NVMe interface that supports disk read/ write speeds over 2000 MB/s and USB 3.1/ GbE ports for fast data transfer, such as acquiring HD video data. With the combination of a fast CPU and inference accelerator GPU, Nuvo-7164GC is the ideal inference platform for artificial intelligence applications.
- Supports NVIDIA® L4/ T4/ A2 GPU
- Dedicated heat dissipation for -25°C to 60°C wide-temperature range operation
- Intel® 9th/ 8th-Gen Core™ hexa-core 35W/ 65W LGA1151 CPU
- 6x GigE ports, 802.3at PoE+ option available (ports 3~6)
- M.2 2280 M key NVMe (Gen3 x4) socket for fast storage access
- 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
- Accommodates two 2.5" SATA HDD/SSD with RAID 0/1 support
- MezIO™ interface for easy function expansion
Specification
| System Core | |
|---|---|
| Processor | Supporting Intel® 9th/ 8th-Gen CPU (LGA1151 socket, 65W/ 35W TDP) - Intel® Core™ i7-8700/ i7-8700T/ i7-9700E/ i7-9700TE - Intel® Core™ i5-8500/ i5-8500T/ i5-9500E/ i5-9500TE - Intel® Core™ i3-8100/ i3-8100T/ i3-9100E/ i3-9100TE |
| Chipset | Intel® Q370 platform controller hub |
| Graphics | Integrated Intel® UHD graphics 630 |
| Memory | Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots) |
| AMT | Supports AMT 12.0 |
| TPM | Supports TPM 2.0 |
| I/O Interface | |
|---|---|
| Ethernet Port | 6x Gigabit Ethernet ports by I219 and 5x I210 |
| POE+ | Optional IEEE 802.3at PoE+ PSE for port 3 ~ port 6 100 W total power budget |
| USB | 4x USB 3.1 Gen2 (10 Gbps) ports 4x USB 3.1 Gen1 (5 Gbps) ports |
| Video Port | 1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution |
| Serial Port | 2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Internal Expansion Bus | |
|---|---|
| PCI/PCI Express | 1x PCIe x16 slot@Gen3, 16-lanes PCIe signal in Cassette for installing NVIDIA® L4/ T4/ A2 GPU |
| Mini PCI-E | 1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA) |
| M.2 | 1x M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module |
| Expandable I/O | 1x MezIO™ expansion port for Neousys MezIO™ modules |
| Storage interface | |
|---|---|
| SATA HDD | 2x internal SATA ports for 2.5" HDD/ SSD installation, supporting RAID 0/1 |
| M.2 NVMe | 1x M.2 2280 M key NVMe socket (PCIe Gen3/ x4) for NVMe SSD installation |
| mSATA | 1x full-size mSATA port (mux with mini-PCIe) |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8V to 35V DC input |
| Remote Ctrl. & LED Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Mechanical | |
|---|---|
| Dimension | 240mm (W) x 225 mm (D) x 110.5 mm (H) |
| Weight | 4.5 Kg (including CPU, GPU, memory and HDD) |
| Mounting | Wall-mount mounting bracket or optional DIN-Rail mounting |
| Environmental | |
|---|---|
| Operating temperature | with 35W CPU -25°C ~ 60°C ** With 65W CPU -25°C ~ 60°C */** (configured as 35W TDP) -25°C ~ 50°C */** (configured as 65W TDP) In compliance with NVIDIA® L4/ T4/ A2 warranty policy, an operating temperature of 0°C~50°C is required for systems with L4/ T4/ A2 installed |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 10% ~ 90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55024 |
* For i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
**For sub-zero operating temperature, a wide temperature range HDD or Solid State Disk (SSD) is required.
