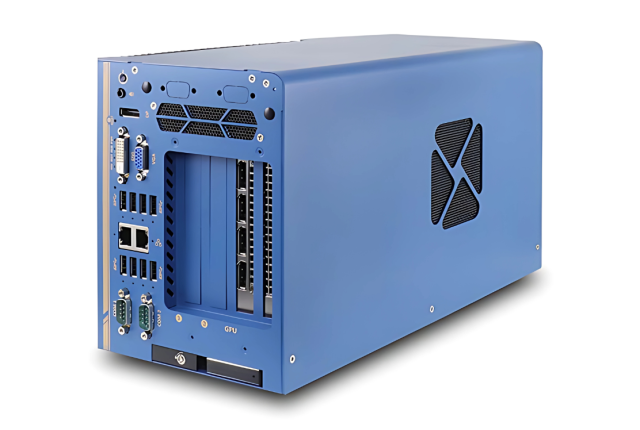

Nuvo-8108GC-QD
Industrial-grade Edge AI Platform Supporting NVIDIA® RTX A6000/ A4500 GPU, Intel® Xeon® E and 9th/ 8th-Gen Core™ Processor
Introduction
Nuvo-8108GC-QD, the latest member of the well-received Nuvo-8108GC series, is a rugged edge AI platform specially designed for NVIDIA® RTX A6000 and RTX A4500 Ampere GPU cards. The GPUs offer tremendous computing power and product longevity, to take GPU-accelerated edge AI applications such as autonomous driving, vision inspection and intelligent video analytics to the next level of reliability and availability.
Powered by an Intel® Xeon® E or 9th/ 8th-Gen Core™ (up to 8-core/ 16-thread) CPU with workstation-grade Intel® C246 chipset to support up to 128 GB ECC or non-ECC DDR4 memory, it has a strong foundation for building a powerful AI edge computing platform. It has a refined thermal dissipation design to optimize GPU performance in high-temperature environments. Additionally, Nuvo-8108GC-QD comes with a dedicated mounting bracket for RTX A6000/ A4500 to keep the GPU card firmly secured in the PCIe slot. Along with Neousys’ patented damping brackets*, it ensures rock-solid operation in intensive shock and vibration conditions.
- Supports NVIDIA® RTX A6000/ A4500 GPU cards
- Supports Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5 LGA1151 CPU
- Up to 128GB ECC/ non-ECC DDR4 2133 (4x SODIMM)
- One x16 (8-lanes), one x8 (4-lanes), Gen3 PCIe slots for add-on cards
- Dedicated GPU card bracket
- 8~48V wide-range DC input with built-in ignition power control
- Patented thermal design for -25°C to 60°C rugged operation*
- Patented damping brackets* to withstand 3 Grms vibration
Specifications
| System Core | |
|---|---|
| Processor | Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket) - Xeon E 2176G/ 2278GE (8C/16T) / 2278GEL (8C/16T) - i7-9700E, i7-9700TE, i7-8700, i7-8700T - i5-9500E, i5-9500TE, i5-8500, i5-8500T - i3-9100E, i3-9100TE, i3-8100, i3-8100T |
| Chipset | Intel® C246 Platform Controller Hub |
| Graphics | Independent NVIDIA® RTX A6000/ A4500 GPU via x16 PEG port,or integrated Intel® UHD graphics 630 |
| Memory | Up to 128 GB ECC/ non-ECC DDR4 2133 SDRAM (four SODIMM slots) |
| AMT | Supports AMT 12.0 |
| TPM | Supports TPM 2.0 |
| I/O Interface | |
|---|---|
| Ethernet | 1x Gigabit Ethernet port by Intel® I219-LM 1x Gigabit Ethernet port by Intel® I210-IT |
| Video Port | 1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution |
| Serial Port | 2x software-programmable RS-232/ 422/ 485 ports(COM1/ COM2) |
| USB | 4x USB 3.2 Gen2 (10 Gbps) ports 4x USB 3.2 Gen1 (5 Gbps) ports 1x USB 2.0 ports (internal for dongle use) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Storage Interface | |
|---|---|
| SATA | 1x hot-swappable HDD tray for 2.5" HDD/ SSD installation 1x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation |
| mSATA | 2x full-size mSATA port (mux with mini-PCIe) |
| Expansion Bus | |
|---|---|
| PCI Express | 2x PCIe x16 slot@Gen3, 8-lanes 2x PCIe x8 slots@Gen3, 4-lanes |
| M.2 | 1x M.2 2242 B key socket supporting dual SIM mode with selected M.2 LTE module |
| mini-PCIe | 2x full-size mini PCI Express socket |
| Power Supply | |
|---|---|
| DC Input | 2x 4-pin pluggable terminal block for 8~48V DC input with ignition control [1] |
| Mechanical | |
|---|---|
| Dimension | 170.2 mm (W) x 360 mm (D) x 201.8 mm (H) |
| Weight | 5.8 Kg |
| Mounting | Neousys' patented damping brackets |
| Environmental | |
|---|---|
| Operating Temperature | with 35W CPU and one NVIDIA® RTX A6000/ A4500 GPU -25°C ~ 60°C[3] with >= 65W CPU and one NVIDIA® RTX A6000/ A4500 GPU -25°C ~ 60°C [2][3] (configured as 35W TDP mode) -25°C ~ 50°C [2][3] (configured as 65W TDP mode) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/ FCC Class A, according to EN 55024 & EN 55032 |
