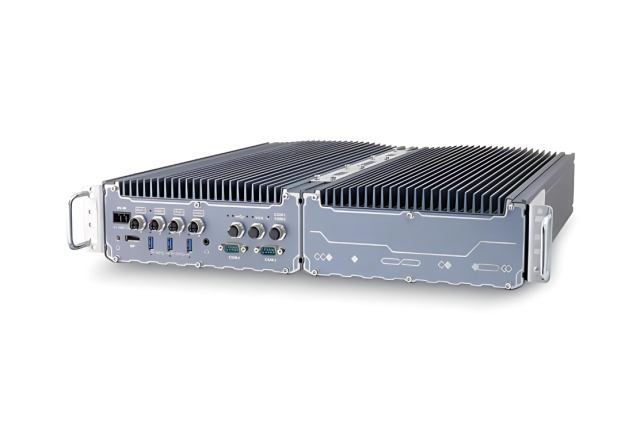

SEMIL-1300GC Series
Wide-temperature Fanless GPU Computer including NVIDIA® RTX 2000 Ada and supporting Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU with M12 connectors
Introduction
SEMIL-1300GC series is the world's first wide-temperature fanless edge AI computer supporting NVIDIA® RTX 2000 Ada for demanding environments. Coupled with Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU, the system delivers excellent CPU and GPU performances for modern edge AI applications. SEMIL-1300GC series features Neousys' patented thermal system architecture* to guarantee -40°C to 70°C fanless operation in a rack-mountable or wall-mountable 2U 19"enclosure.
SEMIL-1300GC series features an advanced passive cooling design to ensure the CPU/ GPU does not throttle when operating in high-temperature environments. Compatible with a RTX 2000 Ada GPU, users can utilize the scalable GPU performance that offers up to 12.0 TFLOPS in FP32 or 191.9 TOPS in INT8. The system leverages M12 connectors for Gigabit PoE+, USB 2.0, VGA and COM ports to offer rugged cable connectivity. Other high-speed computer I/Os include DisplayPort, USB 3.1 Gen1, optional 10G Ethernet and storage interfaces such as an M.2 for NVMe SSD and SATA ports, making SEMIL-1300GC expandable and versatile.
- Fanless GPU computer with NVIDIA® RTX RTX 2000 Ada
- Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU
- Patented 2U 19" chassis for rack or wall-mount[1]
- Four 802.3at Gigabit PoE+ ports via M12 X-coded connectors
- VGA, USB 2.0 and COM ports via M12 A-coded connectors
- 1x DisplayPort and 3x USB 3.1 Gen1 ports
- 8V to 48V wide-range DC input with built-in ignition power control
- MIL-STD-810G and EN 50155 EMC compliant
Specifications
| System Core | |
|---|---|
| Processor | Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket) - Xeon E 2278GE (8C/16T) / 2278GEL (8C/16T) / 2176G (6C/12T) - i7-9700E, i7-9700TE, i7-8700, i7-8700T - i5-9500E, i5-9500TE, i5-8500, i5-8500T - i3-9100E, i3-9100TE, i3-8100, i3-8100T |
| Chipset | Intel® C246 platform controller hub |
| Graphics | Integrated Intel® UHD Graphics 630 |
| Acceleration GPU | NVIDIA® RTX 2000 Ada for AI inference |
| Memory | Up to 64 GB ECC/ non ECC DDR4-2666/ 2400 SDRAM(two SODIMM sockets) |
| AMT | Supports AMT 12.0 |
| TPM | Supports TPM 2.0 |
| I/O Interface | |
| PoE+ | 1x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I219 (M12 X-coded) 3x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded) |
| 10 GbE Port(Build Option) | Optional: 1x 10 GbE port by Intel® X550AT controller (M12 X-coded)** |
| Native Video Port | 1x VGA (M12 A-coded), supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution |
| Series Port | 2x 3-wires RS-232 ports COM1 & COM2 (M12 A-coded) 1x software-programmable RS-232/ 422/ 485 port (COM3, DB9) 1x RS-232 port (COM4, DB9) |
| USB | 3x USB 3.1 Gen1 2x USB 2.0 (M12 A-coded) 1x USB 2.0 (internal) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Storage Interface | |
| SATA HDD | 2x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 |
| mSATA | 2x full-size mSATA port (mux with mini-PCIe) |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation |
| Expansion Bus | |
|---|---|
| Mini PCI-E | 2x full-size mini PCI Express sockets (mux with mSATA) 1x M.2 3042/ 3052 B key socket for selected M.2 4G/ 5G module 1x M.2 2242/ 2252 E key for selected WiFi module |
| Power Supply | |
| DC Input | 8V to 48V DC input |
| Ignition Control | Built-in ignition power control |
| Mechanical | |
| Dimension | 440mm (W) x 310mm (D) x 90.5mm (H) (excl. rack-mount bracket) |
| Weight | 12Kg |
| Mounting | Rack-mounting and wall-mounting |
| Environmental | |
| Operating Temperature | with 35W CPU -40°C ~ 70°C [3] with >= 65W CPU -40°C ~ 70°C [2]/[3] (configured as 35W TDP mode) -40°C ~ 50°C [2]/[3] (configured as 65W TDP mode) |
| Storage Temperature | -40°C ~85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | MIL-STD-810G, Method 514.7, Category 4 |
| Shock | MIL-STD-810G, Method 516.7, Procedure I |
| EMC | EN 50121 (EN 50155 EMC) EN-50155, CE/FCC Class A, according to EN 55032 & EN 55035 |
