Half-Rack Rugged Fanless Computer Supporting Intel® Xeon® E or 9th/ 8th-Gen Core™ Processor with M12 Connectors

Availability:

In Stock

Features
Reviews

Introduction

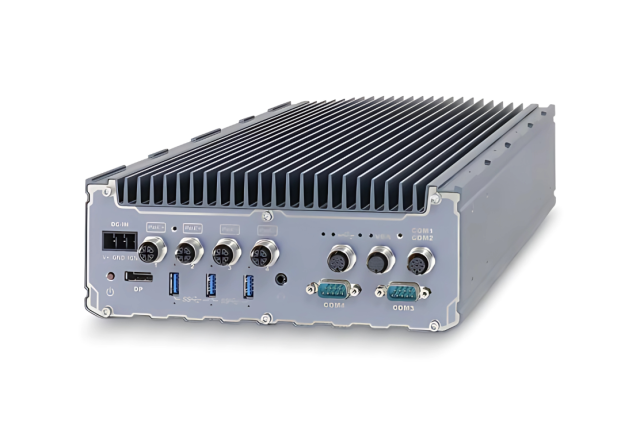

SEMIL-1300 series is a rugged fanless computer with robust M12 I/O connectors in a standard 2U 19" half-rack form factor enclosure. Powered by Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU and coupled with workstation-grade Intel® C246 chipset, it supports up to 64 GB DDR4 ECC/non-ECC memory and offers flexible mounting options to wall or rack-mount up to two SEMILs side by side.

SEMIL-1300 series incorporates Neousys' best-in-class passive thermal design for proven -40 °C to 70 °C fanless operation. It offers a variety of I/O connectivities utilizing M12 connectors that are reliably robust, cost-effective and can be obtained off-the-shelf. There are also generic I/Os with screw-lock mechanisms to guarantee an extreme-rugged connection in shock and vibration environments. It has four 802.3at PoE+ ports, each supplying 25W of power to the connected device such as an IP or GigE camera. SEMIL-1300 is designed with 4G/5G and WiFi5/WiFi6 wireless connectivity in mind and it supports 8-48V wide-range DC input with ignition power control for in-vehicle use while complying with EN 50155 EMC.

Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU
2U half-rack fanless system, -40°C to 70°C operation
4x 802.3at Gigabit PoE+, VGA, 2x USB 2.0, 2x COM via M12 connectors
M.2 B key for 4G/ 5G module, M.2 E key for WiFi module
Patented supercapacitor-based uninterruptible power backup[1](SEMIL-1311J)
8~48V wide-range DC input with built-in ignition power control
MIL-STD-810G and EN 50155 EMC compliant

Specifications

System Core
	SEMIL-1301	SEMIL-1311J
Processor	Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket) - Xeon E 2278GE (8C/16T) / 2278GEL (8C/16T) / 2176G (6C/12T) - i7-9700E, i7-9700TE, i7-8700, i7-8700T - i5-9500E, i5-9500TE, i5-8500, i5-8500T - i3-9100E, i3-9100TE, i3-8100, i3-8100T
Chipset	Intel® C246 platform controller hub
Graphics	Integrated Intel® UHD Graphics 630
Memory	Up to 64 GB ECC/ non-ECC DDR4-2666/ 2400 SDRAM (two SODIMM sockets)
AMT	Supports AMT 12.0
TPM	Supports TPM 2.0
I/O Interface
PoE+	1x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I219 (M12 X-coded) 3x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded)
10 GbE Port(Build Option)	Optional: 1x 10 GbE port by Intel® X550AT controller (M12 X-coded)**
Native Video Port	1x VGA (M12 A-coded), supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution
Series Port	2x 3-wires RS-232 ports COM1 & COM2 (M12 A-coded) 1x software-programmable RS-232/ 422/ 485 port (COM3, DB9) 1x RS-232 port (COM4, DB9)
USB	3x USB 3.1 Gen1 2x USB 2.0 (M12 A-coded) 1x USB 2.0 (internal)
Audio	1x 3.5 mm jack for mic-in and speaker-out
Storage Interface
SATA HDD	2x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1
mSATA	2x full-size mSATA port (mux with mini-PCIe)
M.2	1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation

Expansion Bus
	SEMIL-1301	SEMIL-1311J
Mini PCI-E	2x full-size mini PCI Express sockets (mux with mSATA) 1x M.2 3042/ 3052 B key socket for selected M.2 4G/ 5G module 1x M.2 2242 E key for selected WiFi module
Power Supply
DC Input	8V to 48V DC input
Ignition Control	Built-in ignition power control
Power Backup
Capacity	-	2500 watt-second
Mechanical
Dimension	220mm (W) x 310mm (D) x 90.5mm (H) (excl. rack-mount bracket)
Weight	5.8 kg	6 kg
Mounting	Rack-mounting and wall-mounting
Environmental
Operating Temperature	with 35W CPU -40°C ~ 70°C[3] with >= 65W CPU -40°C ~ 70°C [2]/ [3] (configured as 35W TDP mode) -40°C ~ 50°C [2]/ [3] (configured as 65W TDP mode)
Storage Temperature	-40°C ~85°C
Humidity	10%~90% , non-condensing
Vibration	MIL-STD-810G, Method 514.7, Category 4
Shock	MIL-STD-810G, Method 516.7, Procedure I
EMC	EN 50121 (EN 50155 EMC) CE/FCC Class A, according to EN 55032 & EN 55035
