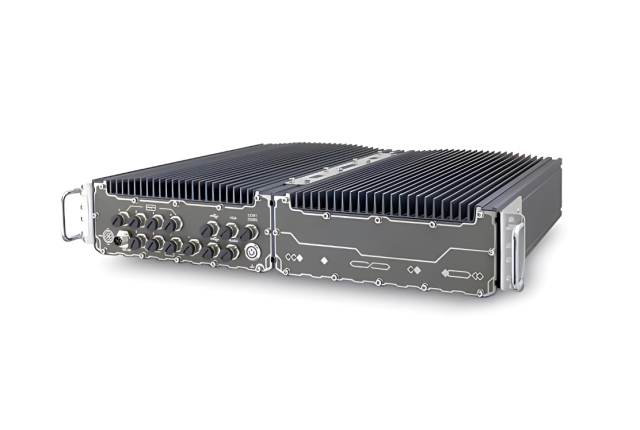

SEMIL-1700GC Series
IP67 Waterproof GPU Computer supporting NVIDIA® RTX 2000 Ada or L4 and Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU with All M12 Connectors
Introduction
SEMIL-1700GC series is one of the world's first IP67-rated, waterproof and dustproof inference server with pre-installed NVIDIA® RTX 2000 Ada/ L4 for the most demanding environments. It is a brand new page in Neousys' chapter of innovations as it represents a new level of robustness for rugged edge AI solutions. Coupled with Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU, the system delivers excellent CPU and GPU performances for advanced edge AI applications in various environmental settings. SEMIL-1700GC series features Neousys' patented system architecture* to guarantee -40°C to 70°C fanless operation in a rack or wall-mountable 2U 19” enclosure.
SEMIL-1700GC series features a sophisticated thermal design to dissipate the heat generated by RTX 2000 Ada/ L4 GPU to ensure maximum GPU performance in high-temperature environments. It has a corrosion-proof, stainless steel/ aluminum chassis with molded o-rings plus patented fusion mechanism design to offer extraordinary durability and watertight construction. SEMIL-1700GC series offers a variety of I/O connectivities, including 802.3at Gigabit PoE+, VGA, USB, COM ports and optional 10G Ethernet, all using M12 connectors for water-proof and extreme-rugged connectivity in shock and vibration conditions. Additionally, it features M.2 for NVMe SSD, 2.5" SATA storage accommodation, 8 to 48V wide-range DC input with ignition power control and complies with MIL-STD-810G and EN 50155 EMC.
- IP67 waterproof GPU computer with NVIDIA® RTX 2000 Ada/ L4
- Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU
- Patented waterproof 2U 19" chassis for rack or wall-mount*
- Up to eight 802.3at Gigabit PoE+ ports via M12 X-coded connectors
- VGA, USB 2.0 and COM ports via M12 A-coded connectors
- 8~48V wide-range DC input with built-in ignition power control
- MIL-STD-810G and EN 50155 EMC certified
Specifications
| SEMIL-1724GC | SEMIL-1744GC | SEMIL-1728GC | SEMIL-1748GC | |
| System Core | ||||
|---|---|---|---|---|
| Processor | Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket) - Xeon E 2278GE (8C/16T) / 2278GEL (8C/16T) / 2176G (6C/12T) - i7-9700E, i7-9700TE, i7-8700, i7-8700T - i5-9500E, i5-9500TE, i5-8500, i5-8500T - i3-9100E, i3-9100TE, i3-8100, i3-8100T |
|||
| Chipset | Intel® C246 platform controller hub | |||
| Graphics | Integrated Intel® UHD Graphics 630 | |||
| Acceleration GPU | NVIDIA® RTX 2000 Ada | NVIDIA® L4 | NVIDIA® RTX 2000 Ada | NVIDIA® L4 |
| Memory | Up to 64 GB ECC/ non-ECC DDR4-2666/ 2400 SDRAM(two SODIMM sockets) | |||
| AMT | Supports AMT 12.0 | |||
| TPM | Supports TPM 2.0 | |||
| I/O Interface | ||||
| PoE+ | 1x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I219 (M12 X-coded) | |||
| 3x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded) | 7x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded) | |||
| 10 GbE Port (Build Option) |
Optional: 1x 10 GbE port by Intel® X550AT controller (M12 X-coded) | |||
| Native Video Port | 1x VGA (M12 A-coded), supporting 1920 x 1200 resolution | |||
| Series Port | 2x 3-wires RS-232 ports COM1 & COM2 (M12 A-coded) | |||
| USB | 2x USB 2.0 (M12 A-coded) 1x USB 2.0 (internal) |
4x USB 2.0 (M12 A-coded) 1x USB 2.0 (internal) |
||
| Audio | - | 1x mic-in and speaker-out (M12 A-coded) | ||
| Storage Interface | ||||
| SATA HDD | 2x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 | |||
| mSATA | 2x full-size mSATA port (mux with mini-PCIe) | |||
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation | |||
| SEMIL-1724GC | SEMIL-1744GC | SEMIL-1728GC | SEMIL-1748GC | |
| Expansion Bus | ||||
|---|---|---|---|---|
| Mini PCI-E | 2x full-size mini PCI Express socket (mux with mSATA) | 2x full-size mini PCI Express socket (mux with mSATA) 2x full-size mini PCI Express socket |
||
| Power Supply | ||||
| DC Input | 8V to 48V DC input (M12 S-coded) | |||
| Ignition Control | Built-in ignition power control (IGN/ GND signal via M12 serial port connector) | |||
| Mechanical | ||||
| Dimension | 440mm (W) x 310mm (D) x 90.5mm (H) (excl. rack-mount bracket) | |||
| Weight | 12Kg | 12.2Kg | ||
| Mounting | Rack-mounting and wall-mounting | |||
| Environmental | ||||
| Operating Temperature | with 35W CPU -40°C ~ 70°C [3] with >= 65W CPU -40°C ~ 70°C [2]/[3] (configured as 35W TDP mode) -40°C ~ 50°C [2]/[3] (configured as 65W TDP mode) |
|||
| Storage Temperature | -40°C ~85°C | |||
| Humidity | 10%~90% , non-condensing | |||
| Vibration | MIL-STD-810G, Method 514.7, Category 4 | |||
| Shock | MIL-STD-810G, Method 516.7, Procedure I | |||
| EMC | EN 50121 (EN 50155 EMC) CE/FCC Class A, according to EN 55032 & EN 55035 |
|||
