SEMIL-1700 Series
Half-rack IP67 Waterproof Computer Supporting Intel® Xeon® E or 9th/ 8th-Gen Core™ Processor with All M12 Connectors
Introduction

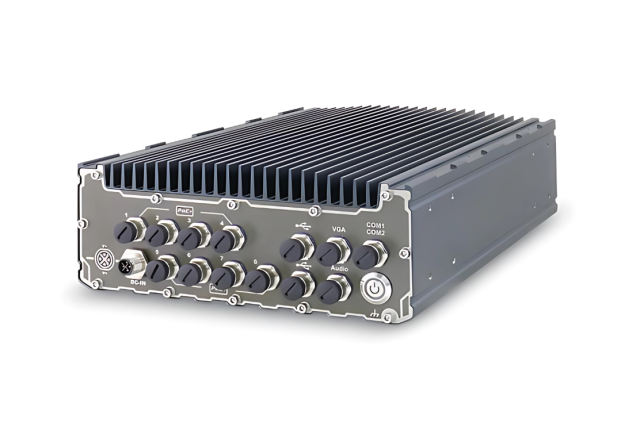

SEMIL-1700 series is an extremely rugged 2U half-rack computer with an IP67-rated waterproof and dustproof design. Powered by Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU and coupled with workstation-grade Intel® C246 chipset, it can support up to 64 GB ECC/ non-ECC DDR4 memory. The 2U half-rack form-factor SEMIL-1700 series incorporates Neousys' best-in-class thermal design and offers mounting flexibility where you can wall or rack-mount up to two SEMILs side by side.
SEMIL-1700 adopts a corrosion-proof chassis made of stainless steel and aluminum to counteract against moisture and salinity. Offering a variety of I/O connectivities that utilize M12 connectors to guarantee extremely rugged connections in shock and vibration environments, it has up to eight 802.3at PoE+ ports to supply 25W of power to connected devices. Internal expansion wise, it has an M.2 M-key socket to support NVMe SSD and mini-PCIe sockets for extending feature sets. Additionally, SEMIL-1700 features two 2.5" SATA SDD/ HDD accommodation, 8-48V wide-range DC input with ignition power control and complies with MIL-STD-810G and EN 50155 EMC.
- Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU
- Extremely rugged, IP67-rated waterproof and dustproof
- -40°C to 70°C wide-temperature fanless operation
- 2U 19" half-rack form-factor for rack or wall-mount
- Up to 8x 802.3at Gigabit PoE+ ports via M12 X-coded connectors
- VGA, USB 2.0 and COM ports via M12 A-coded connectors
- Patented SuperCAP-based uninterruptible power backup[1] (SEMIL-1710J)
- 8V to 48V wide-range DC input with built-in ignition power control
- MIL-STD-810G and EN 50155 EMC compliant
Specifications
| SEMIL-1704 | SEMIL-1714J | SEMIL-1708 | SEMIL-1718J | |
| System Core | ||||
|---|---|---|---|---|
| Processor | Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket) - Xeon E 2278GE (8C/16T) / 2278GEL (8C/16T) / 2176G (6C/12T) - i7-9700E, i7-9700TE, i7-8700, i7-8700T - i5-9500E, i5-9500TE, i5-8500, i5-8500T - i3-9100E, i3-9100TE, i3-8100, i3-8100T |
|||
| Chipset | Intel® C246 platform controller hub | |||
| Graphics | Integrated Intel® UHD Graphics 630 | |||
| Memory | Up to 64 GB ECC/ non-ECC DDR4-2666/ 2400 SDRAM (two SODIMM sockets) |
|||
| AMT | Supports AMT 12.0 | |||
| TPM | Supports TPM 2.0 | |||
| I/O Interface | ||||
| PoE+ | 1x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I219 (M12 X-coded) | |||
| 3x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded) | 7x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded) | |||
| 10 GbE Port(Build Option) | Optional: 1x 10 GbE port by Intel® X550AT controller (M12 X-coded) | |||
| Native Video Port | 1x VGA (M12 A-coded), supporting 1920 x 1200 resolution | |||
| Series Port | 2x 3-wires RS-232 ports COM1 & COM2 (M12 A-coded) | |||
| USB | 2x USB 2.0 (M12 A-coded) 1x USB 2.0 (internal) |
4x USB 2.0 (M12 A-coded) 1x USB 2.0 (internal) |
||
| Audio | - | 1x mic-in and speaker-out (M12 A-coded) | ||
| Storage Interface | ||||
| SATA HDD | 2x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 | |||
| mSATA | 2x full-size mSATA port (mux with mini-PCIe) | |||
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation | |||
|
SEMIL-1704 |
SEMIL-1714J |
SEMIL-1708 |
SEMIL-1718J |
|
|
Expansion Bus |
||||
|---|---|---|---|---|
|
Mini PCI-E |
2x full-size mini PCI Express socket (mux with mSATA) |
2x full-size mini PCI Express socket (mux with mSATA) 2x full-size mini PCI Express socket |
||
|
Power Supply |
||||
|
DC Input |
8V to 48V DC input (M12 S-coded) |
|||
|
Ignition Control |
Built-in ignition power control (IGN/ GND signal via M12 serial port connector) |
|||
|
SuperCAP UPS |
||||
|
Capacity |
- |
2500 watt-second |
- |
2500 watt-second |
|
Mechanical |
||||
|
Dimension |
220mm (W) x 310mm (D) x 90.5mm (H) |
|||
|
Weight |
5.8 kg |
6 kg |
5.9 kg |
6.2 kg |
|
Mounting |
Rack-mounting and wall-mounting |
|||
|
Environmental |
||||
|
Operating Temperature |
with 35W CPU -40°C ~ 70°C [3] with >= 65W CPU -40°C ~ 70°C[2]/[3] (configured as 35W TDP mode) -40°C ~ 50°C[2]/[3] (configured as 65W TDP mode) |
|||
|
Storage Temperature |
-40°C ~85°C |
|||
|
Humidity |
10%~90% , non-condensing |
|||
|
Vibration |
MIL-STD-810G, Method 514.7, Category 4 |
|||
|
Shock |
MIL-STD-810G, Method 516.7, Procedure I |
|||
|
EMC |
EN 50121 (EN 50155 EMC) CE/FCC Class A, according to EN 55032 & EN 55035 |
|||
