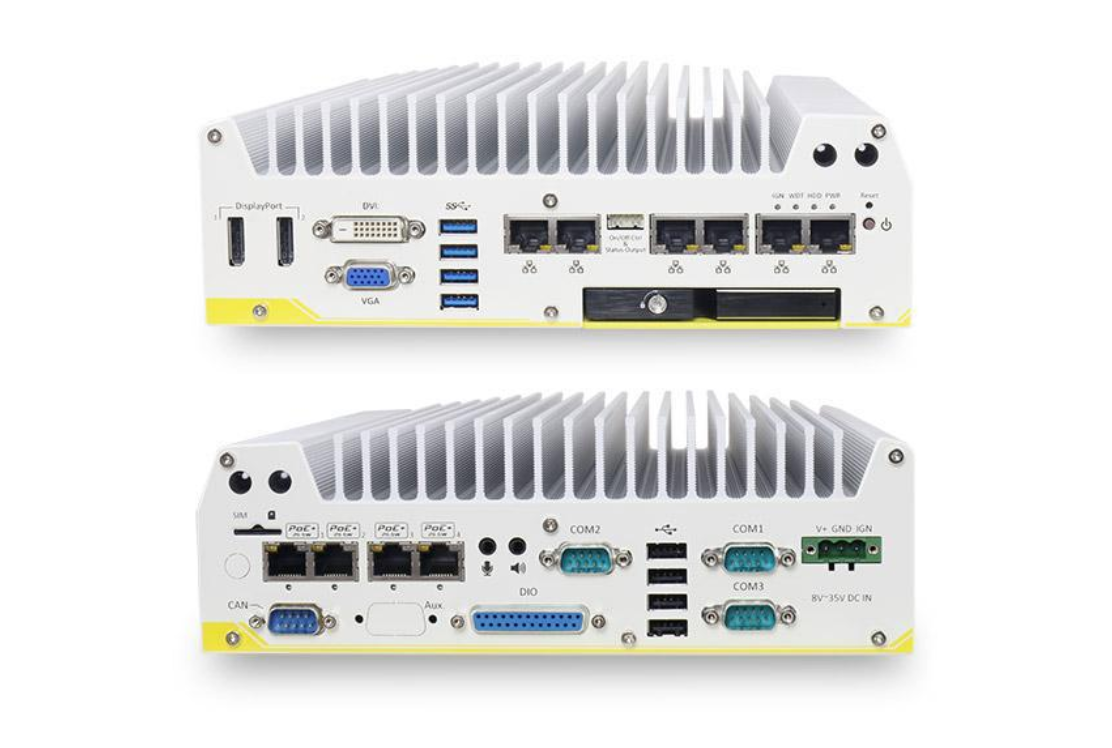

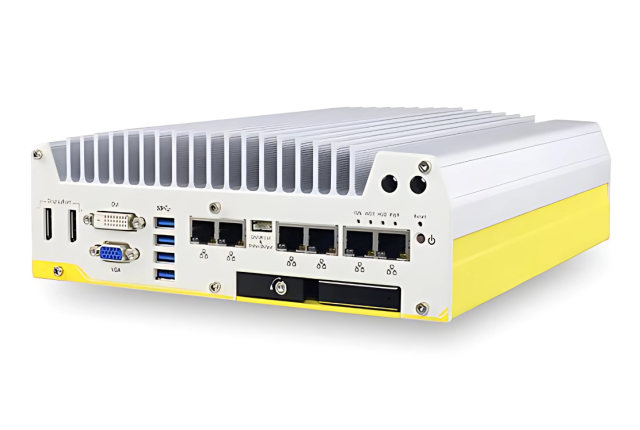

Nuvo-5104VTC
Intel® 6th-Gen Core™ i7/i5/i3 Skylake in-vehicle fanless embedded computer with 4x PoE+ Ports, DIO, CAN bus and RAID
Introduction
Nuvo-5104VTC is a state-of-the-art in-vehicle fanless embedded computer. Featuring Intel® 6th-Gen Core™ CPU, it exhibits superb CPU and GPU performance for various in-vehicle applications.
Nuvo-5104VTC offers four 802.3at PoE+ ports to supply 25W power to the connected device. Two more Gigabit Ethernet ports are available for data communication. You can also utilize four internal mini-PCIe sockets with corresponding modules for 3G/4G/WIFI communication.
In addition, Nuvo-5104VTC series integrates CAN bus for communicating with in-vehicle CAN bus system, individual ECUs or other automotive devices, there's also an isolated DIO for sensor/actuator control. Combing Neousys' intelligent ignition power control and dual-drive RAID storage, Nuvo-5104VTC is simply the one to satisfy all your application demands.
- Supports Intel® 6th-Gen Core™ i7/i5/i3 LGA1151 socket-type CPU
- Up to 4x 802.3at Gigabit PoE+ ports via RJ45 connectors
- On-board CAN bus for in-vehicle communication
- 4-CH isolated DI and 4-CH isolated DO
- 2x SATA ports with one hot-swappable HDD tray, supporting RAID 0/1
- 4x full-size mini-PCIe sockets with SIM support
- 8V to 35V wide-range DC input with built-in ignition power control
- EN 50155/ EN45545 certificate & E13 No. 10R-0514321
Specifications
| System Core | |
|---|---|
| Processor | Supports Intel® Core™ i7/i5/i3 LGA1151 CPU -Core™ i7-6700TE(8M Cache, 2.4/3.4 GHz, 35W TDP) -Core™ i5-6500TE(6M Cache, 2.3/3.3 GHz, 35W TDP) -Core™ i3-6100TE(4M Cache, 2.7 GHz, 35W TDP) |
| Chipset | Intel® Q170 Platform Controller Hub |
| Graphics | Integrated Intel® HD Graphics 530 |
| Memory | Up to 32 GB DDR4-2133 SDRAM (two SO-DIMM slots) |
| AMT | Supports AMT 11.0 |
| TPM | Supports TPM 2.0 |
| I/O Interface | |
|---|---|
| Ethernet | 2x Gigabit Ethernet ports by Intel® I219 and I210 |
| PoE+ | 4x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210, RJ45 connector |
| CAN | 1x CAN 2.0 port |
| Isolated DIO | 4x isolated DI and 4x isolated DO |
| USB | 4x USB 3.1 Gen1 ports via native xHCI controller 4x USB 2.0 ports |
| Video Port | 1x stacked VGA + DVI-D connector 2x DisplayPort connectors, supporting 4K2K resolution |
| Serial Port | 2x software-programmable RS-232/422/485 port (COM1 & COM3) 1x RS-232 port (COM2) |
| Audio | 1x Mic-in and 1x Speaker-out |
| Storage Interface | |
|---|---|
| SATA HDD | 1x hot-swappable HDD tray for 2.5" HDD/SSD installation 1x Internal SATA port for 2.5" HDD/SSD installation, supporting RAID 0/1 |
| mSATA | 1x full-size mSATA port (mux with mini-PCIe) |
| Expansion Bus | |
|---|---|
| Mini PCI-E | 1x full-size mini-PCIe socket with panel-accessible SIM socket 1x full-size mini-PCIe socket with internal SIM socket (mux. with mSATA) 2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8V to 35V DC input |
| Remote Ctrl. & Status Output |
1x 10-pin (2x5) wafer connector for remote on/off control and status LED output |
| Mechanical | |
| Dimension | 240 mm (W) x 225 mm (D) x 79 mm (H) |
| Weight | 3.3 Kg |
| Mounting | Wall-mount with damping brackets (Standard) or DIN-rail mount (optional) |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ 70°C */** |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | IEC61373:2010, Category 1, Class B Body mounted (part of EN50155) |
| Shock | IEC61373:2010, Category 1, Class B Body mounted (part of EN50155) |
| Certification | EN 50155/ EN45545 CE/ FCC Class A, according to EN 55022, EN 55024 & EN 55032 |
* The CPU loading is applied using Passmark® BurnInTest 8.0. For detail testing criteria, please contact Neousys Technology
** For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.
