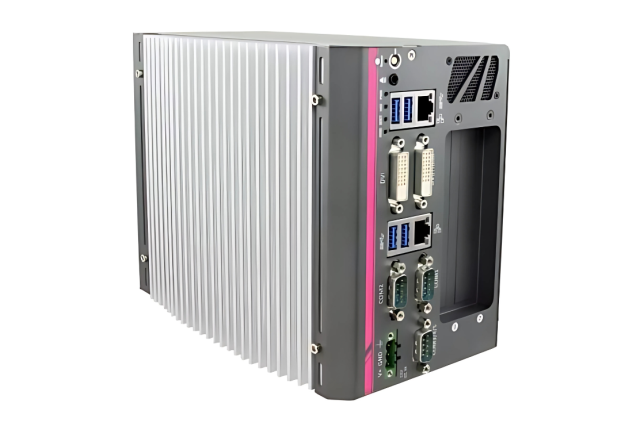

Nuvo-6002
Intel® 6th-Gen Core™ i7/i5 Expandable Industrial PC with 2 PCIe slots
Introduction
Nuvo-6002 is the perfect replacement for your bulky rack-mount or wall-mount IPC systems. Leveraging 6th-Gen Intel® Skylake platform, It delivers the same computing power as traditional IPCs in a compact form-factor and fanless operation.
Nuvo-6002 supports LGA1151 socket-type CPU, thus you can choose from Core™ i7 to Celeron® depending on your performance needs and budget. Its 2-slot expandability is similar to that of most IPCs. The front-accessible I/O design, including 2 GbE, 4 USB 3.1 Gen1 and 5 COM ports, makes it easier to access your Nuvo-6002 when it's placed inside a cabinet or a rack.
Neousys' proven fanless design on Nuvo-6002 presents extraordinary reliability in all situations and its versatile mounting options make it the ideal solution for desktop, cabinet or a 19" rack. With similar performance and cost, better form-factor and reliability, Nuvo-6002 speaks for itself!
- Supports 6th-Gen Intel® Core™ i7/ i5/ i3, Pentium and Celeron® LGA1151 CPU
- Two expansion slots – one x16 PCIe and one x8 PCIe
- Rugged, -25 °C to 60 °C fanless operation
- 2x GbE, 4x USB 3.1 Gen1 and 5x COM ports
- Dual DVI display outputs
- Wall-mounted (optional DIN-rail and rack-mounting)
- Optional fan with automatic temperature sensing and fan control

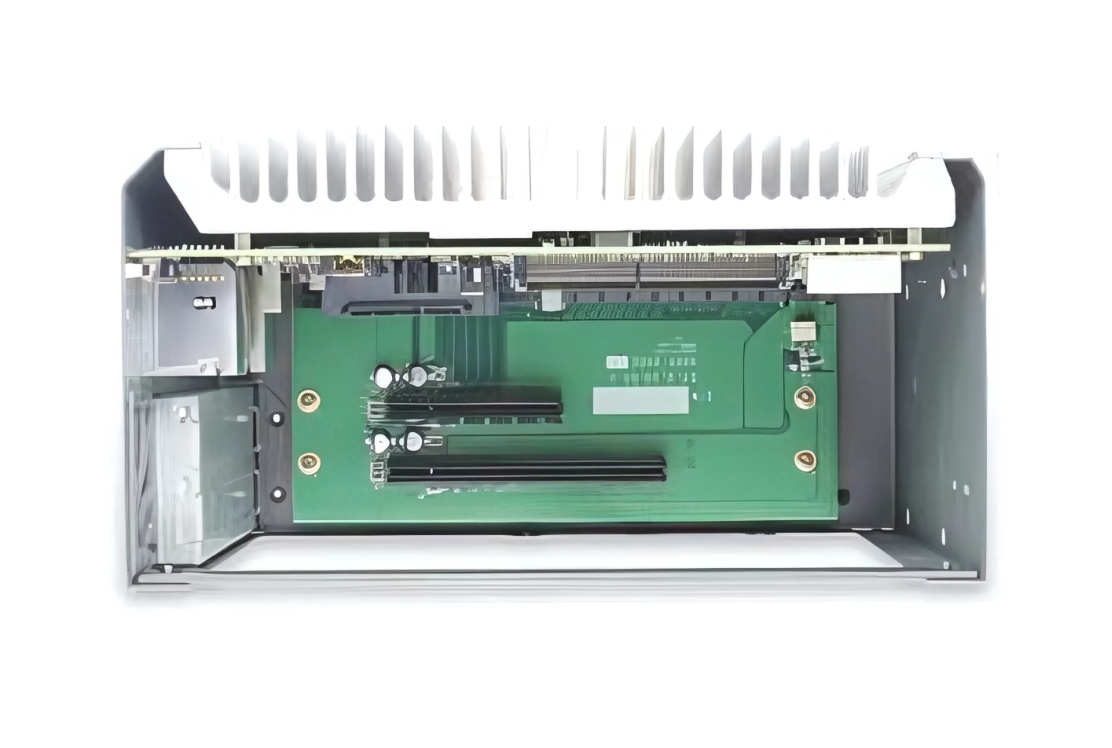

Dual PCIe Slots
Nuvo-6002 offers up to two PCIe slots in its compact chassis to deliver the same level of expandability as off-the-shelf IPCs. Users can install a wide variety of I/O, communication, vision and motion cards for versatile applications.
Specifications
| System Core | |
|---|---|
| Processor | Supports 6th-Gen Intel® Core™, Pentium® and Celeron® LGA1151 CPU Core™ i7-6700TE (8M Cache, 2.4/3.4 GHz, 35W TDP) Core™ i5-6500TE (6M Cache, 2.3/3.3 GHz, 35W TDP) Core™ i3-6100TE (4M Cache, 2.7 GHz, 35W TDP) Pentium® G4400TE (3M Cache, 2.4 GHz, 35W TDP) Celeron® G3900TE (2M Cache, 2.3 GHz, 35W TDP) |
| Chipset | Intel® H110 Platform Controller Hub |
| Graphics | Integrated Intel® HD 530/510 Controller |
| Memory | Up to 16 GB DDR4-2133 by one SODIMM socket |
| I/O Interface | |
|---|---|
| Ethernet Port | 1x Gigabit Ethernet port by Intel® I219-LM 1x Gigabit Ethernet port by Intel® I210-IT |
| Video Port | 2x DVI-D connectors for DVI outputs, supporting 1920x1200 resolution |
| Serial Port | 2x Software-programmable RS-232/422/485 ports 3x 3-wire RS-232 ports |
| USB | 4x USB 3.1 Gen1 ports |
| Audio | 1x Speaker-out |
| Expansion Bus/ Internal I/O Interface | |
|---|---|
| Remote Ctrl. & Status Output | 1x 2x6-pin 2.0mm pin-header connector for remote on/off control and status LED output |
| PCI Express | 1x PCIe x16 slot @ Gen3, 16-lanes PCIE signals 1x PCIe x8 slot @ Gen2, 4-lanes PCIE signals |
| Storage Interface | |
|---|---|
| SATA | 1x SATA port for 2.5" HDD/SSD installation |
| mSATA | 1x full-size mSATA socket |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8~35 VDC input |
| Mechanical | |
|---|---|
| Dimension | 124 mm (W) x 225 mm (D) x 174 mm (H) |
| Weight | 2.8 Kg (Nuvo-6002) |
| Mounting | WWall-mounting (standard) DIN-Rail mounting (optional) rack-mounting (optional) |
| Environmental | |
|---|---|
| Operating Temperature | -25°C ~ 60°C */** |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| EMC | CE/FCC Class A, according to EN 55022, EN 55024 & EN 55032 |
* The CPU loading is applied using Passmark® BurnInTest 8.0. For detail testing criteria, please contact Neousys Technology.
** For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.
