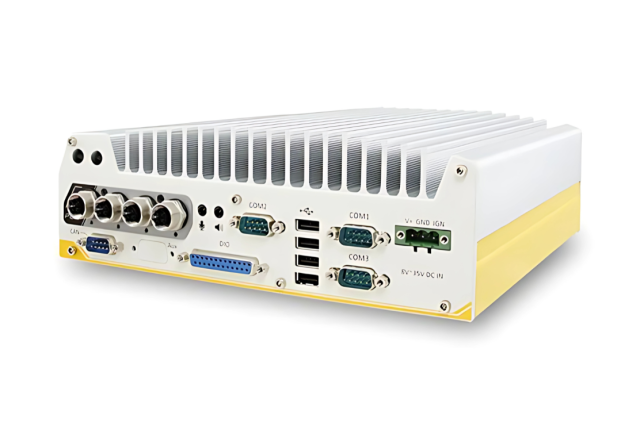

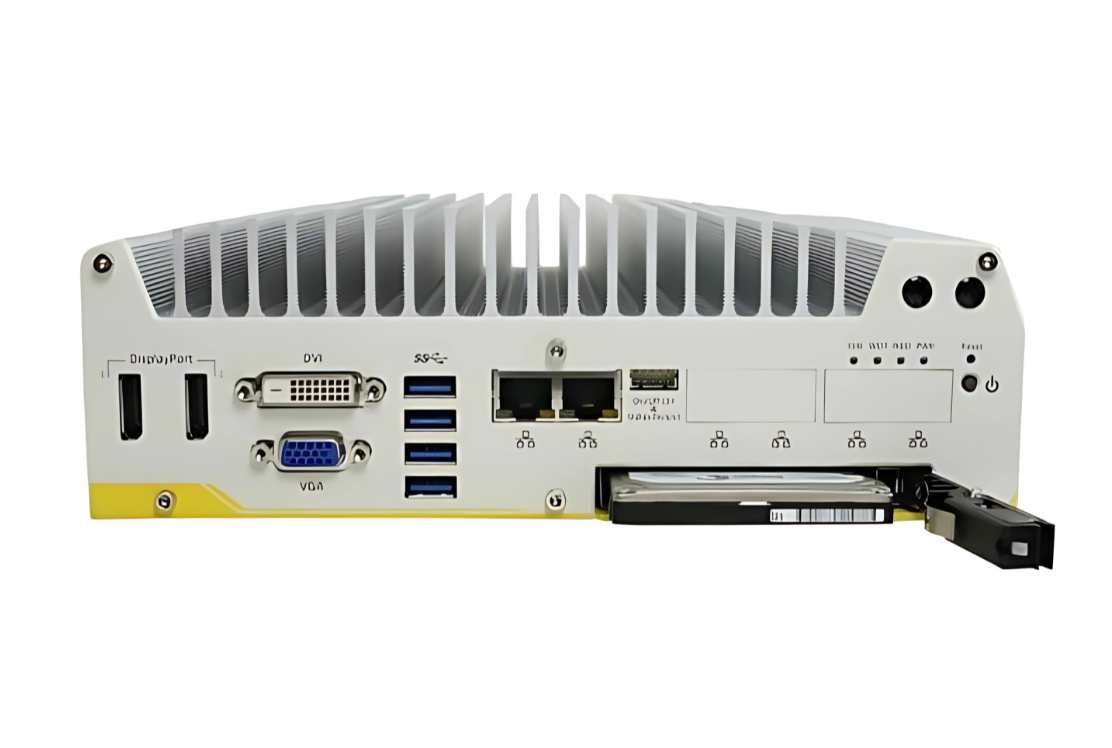

Nuvo-5100VTC series
Intel® 6th-Gen Skylake Core™ i7 in-vehicle fanless embedded computer with 4x M12 PoE+ ports, DIO, CAN bus, RAID and EN50155 certification
Introduction
Nuvo-5100VTC is a state-of-the-art in-vehicle fanless embedded controller in compliant with EN50155/ EN45545 certificate. Featuring Intel® 6th-Gen Core™ CPU, it exhibits superb CPU and GPU performance for various in-vehicle applications.
Nuvo-5100VTC offers four 802.3at PoE+ ports to supply 25W power to the connected device. They are implemented using M12, x-coded connectors, which guarantee extremely rugged connectivities in shocking/vibrating environments. Two more Gigabit Ethernet ports by RJ-45 are available for data communication. You can also utilize four internal mini-PCIe sockets with corresponding modules for 3G/4G/WIFI communication.
In addition, Nuvo-5100VTC integrates CAN bus for communicating with in-vehicle CAN bus system, individual ECUs or other automotive devices. There is also an isolated DIO for sensor/ actuator control, ignition power control and dual-drive RAID storage which makes Nuvo-5100VTC simply the controller that can satisfy all your in-vehicle application needs.
- Supports Intel® 6th-Gen Core™ i7/i5/i3 LGA1151 CPU
- 4x 802.3at Gigabit PoE+ ports via M12 connectors
- On-board CAN bus for in-vehicle communication
- 4-CH isolated DI and 4-CH isolated DO
- 2x SATA ports for two 2.5" SATA HDD/SSD, with one hot-swappable HDD tray, supporting RAID 0/1
- 4x full-size mini-PCIe sockets with SIM support
- 8V to 35V wide-range DC input with built-in ignition control
- EN 50155/ EN45545 certificate & E13 No. 10R-0514321
Specifications
| System Core | |
|---|---|
| Processor | Supports Intel® 9th/8th-Gen Coffee Lake CPU (LGA1151 socket, 35W TDP) - Intel® Core™ i7-8700T/ i7-9700TE - Intel® Core™ i5-8500T/ i5-9500TE - Intel® Core™ i3-8100T/ i3-9100TE |
| Chipset | Intel® Q370 platform controller hub |
| Graphics | Integrated Intel® HD Graphics 630 |
| Memory | Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots) |
| AMT | Supports AMT 12.0 |
| TPM | Supports TPM 2.0 |
| I/O Interface | |
|---|---|
| Ethernet | 2x Gigabit Ethernet ports by Intel® I219 and I210 |
| PoE+ | 4x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 - M12 x-coded connector (Nuvo-7200VTC); - RJ45 connector (Nuvo-7204VTC) 8x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 - RJ45 connector (Nuvo-7208VTC) |
| CAN | 1x isolated CAN 2.0 port |
| Isolated DIO | 4x isolated DI and 4x isolated DO |
| USB | 4x USB 3.1 Gen2 (10 Gbps) ports 4x USB 3.1 Gen1 (5 Gbps) ports |
| Video Port | 1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution |
| Serial Port | 2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4) |
| Audio | 1x Mic-in and 1x speaker-out |
| Storage Interface | |
|---|---|
| SATA HDD | 2x hot-swappable HDD tray for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 |
| mSATA | 1x full-size mSATA port (mux with mini-PCIe) |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation |
| Expansion Bus | |
|---|---|
| PCI Express | 1x PCIe x16 slot @Gen3, 16-lanes PCIe signals in Cassette |
| Mini PCI-E | 1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA) 2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets |
| M.2 | 2x M.2 2242 B key socket, one with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8V to 35V DC input (IGN/ GND/ V+) |
| Remote Ctrl. & Status Output |
1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Mechanical | |
|---|---|
| Dimension | 240 mm (W) x 225 mm (D) x 103mm (H) |
| Weight | 3.7 kg |
| Mounting | Wall-mount with damping brackets (Standard) or DIN-rail mount (optional) |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ 70°C ** |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | IEC61373:2010, Category 1, Class B Body mounted (part of EN50155) |
| Shock | IEC61373:2010, Category 1, Class B Body mounted (part of EN50155) |
| EMC | E-Mark, EN 50121 (EN 50155 EMC) CE/FCC Class A, according to EN 55032 & EN 55035 |
* The CPU loading is applied using Passmark® BurnInTest 8.0. For detail testing criteria, please contact Neousys Technology
** For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.
