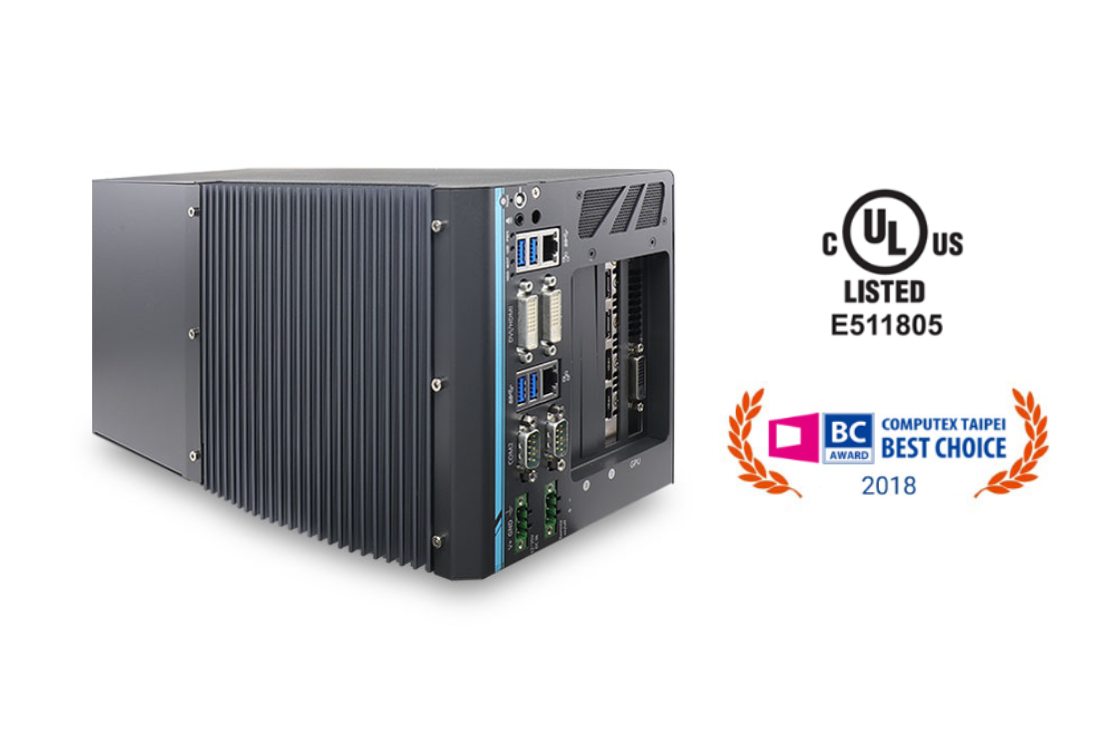

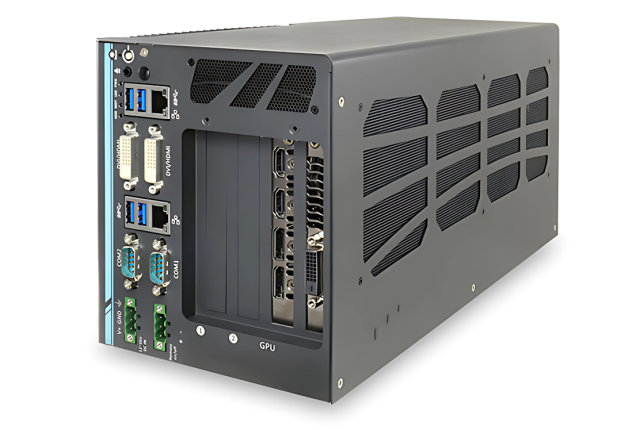

Nuvo-6108GC series
Ruggedized Industrial Edge AI Platform Supporting up to an NVIDIA® RTX 3070 GPU, Intel® Xeon® E3 v5 or 6th-Gen Core™ processor
Introduction
Nuvo-7200VTC is a rugged in-vehicle controller featuring Neousys' patented Cassette module with a x16 PCIe slot for add-on application card flexibility. Powered by Intel® 9th/ 8th-Gen Core™ processors with up to 8-core/ 8-thread and 64GB DDR4 memory, the system is ideal for advance in-vehicle applications. Nuvo-7200VTC offers an assortment of peripherals, connections and expansion flexibility. It has four or eight 802.3at PoE+ ports to supply 25W power to connected devices such as IP cameras with M12 (x-coded connectors) and connector screw-lock mechanisms on I/Os like Gigabit Ethernet, USB 3.1 Gen1 and USB 3.1 Gen2 to guarantee extreme rugged connectivity in shock/ vibration environments. There are two M.2 and three mini-PCIe sockets to install 3G/ 4G, WIFI, GPS, and CAN module for wireless communication. Neousys also offers a 4G cellular module option certified to work with renowned US telecommunications company which can save you implementation time and cost.
- Supports Intel® Xeon® E3 v5 or 6th-Gen Core™ i7/i5 LGA1151 CPU
- Supports up to an NVIDIA RTX 3070 graphics card
- Patented thermal design for -25℃ to 60℃ rugged operation*(* R.O.C Patent No. M534371)
- Two x8, Gen3 PCIe slots for add-on cards
- Dual GbE ports and four USB 3.1 Gen1 ports
- Four 2.5" SATA drives with RAID 0/1/5/10 support
- Automatic temperature sensing and fan control
- Patented damping brackets to withstand 1 Grms Vibration*(* R.O.C Patent No. M491752)
Specifications
| System Core | |
|---|---|
| Processor | Supports Intel® 9th/8th-Gen Coffee Lake CPU (LGA1151 socket, 35W TDP) - Intel® Core™ i7-8700T/ i7-9700TE - Intel® Core™ i5-8500T/ i5-9500TE - Intel® Core™ i3-8100T/ i3-9100TE |
| Chipset | Intel® Q370 platform controller hub |
| Graphics | Integrated Intel® HD Graphics 630 |
| Memory | Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots) |
| AMT | Supports AMT 12.0 |
| TPM | Supports TPM 2.0 |
| I/O Interface | |
|---|---|
| Ethernet | 2x Gigabit Ethernet ports by Intel® I219 and I210 |
| PoE+ | 4x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 - M12 x-coded connector (Nuvo-7200VTC); - RJ45 connector (Nuvo-7204VTC) 8x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 - RJ45 connector (Nuvo-7208VTC) |
| CAN | 1x isolated CAN 2.0 port |
| Isolated DIO | 4x isolated DI and 4x isolated DO |
| USB | 4x USB 3.1 Gen2 (10 Gbps) ports 4x USB 3.1 Gen1 (5 Gbps) ports |
| Video Port | 1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution |
| Serial Port | 2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4) |
| Audio | 1x Mic-in and 1x speaker-out |
| Storage Interface | |
|---|---|
| SATA HDD | 2x hot-swappable HDD tray for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 |
| mSATA | 1x full-size mSATA port (mux with mini-PCIe) |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation |
| Expansion Bus | |
|---|---|
| PCI Express | 1x PCIe x16 slot @Gen3, 16-lanes PCIe signals in Cassette |
| Mini PCI-E | 1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA) 2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets |
| M.2 | 2x M.2 2242 B key socket, one with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8V to 35V DC input (IGN/ GND/ V+) |
| Remote Ctrl. & Status Output |
1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Mechanical | |
|---|---|
| Dimension | 240 mm (W) x 225 mm (D) x 103mm (H) |
| Weight | 3.7 kg |
| Mounting | Wall-mount with damping brackets (Standard) or DIN-rail mount (optional) |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ 70°C ** |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | IEC61373:2010, Category 1, Class B Body mounted (part of EN50155) |
| Shock | IEC61373:2010, Category 1, Class B Body mounted (part of EN50155) |
| EMC | E-Mark, EN 50121 (EN 50155 EMC) CE/FCC Class A, according to EN 55032 & EN 55035 |
* The CPU and GPU loading are applied using Passmark® BurnInTest 8.0 with 35 TDP CPU. Operating Temperature degrades with higher TDP CPU. For detail testing criteria, please contact Neousys Technology
** For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.
