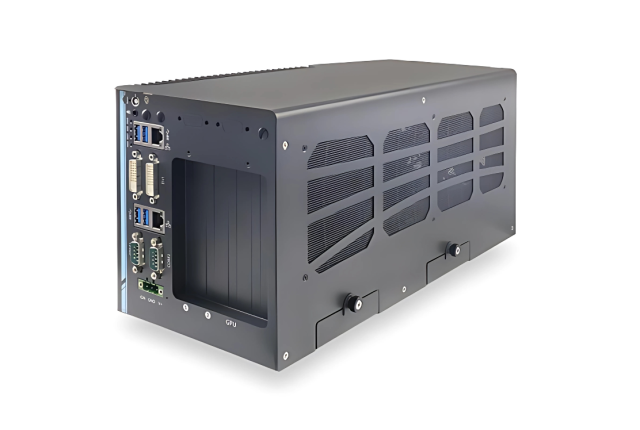

Nuvo-6108GC-IGN
GPU Computing Edge AI In-vehicle Platform Supporting up to an NVIDIA® RTX 3070 Graphics Card, Intel® Xeon® E3 v5 & 6th-Gen Core™ Processor
Introduction
Nuvo-6108GC-IGN is one of the world's first industrial-grade in-vehicle edge AI GPU computing platform supporting high-end graphics cards. It's designed to fuel emerging GPU-ccelerated applications, such as AI(artificial intelligence) inference, VR, autonomous driving and CUDA computing by accommodating 250W NVIDIA® GPU.
Leveraging Intel® C236 chipset, Nuvo-6108GC-IGN in-vehicle edge AI computing platform supports Xeon® E3 v5 or 6th-Gen Core™ i7/ i5 CPU with up to 32 GB ECC/ non-ECC DDR4 memory. It incorporates general computer I/O like Gigabit Ethernet, USB 3.1 Gen1 and serial ports. In addition to the x16 PCIe port for GPU installation, Nuvo-6108GC series also has two x8 PCIe slots so you can install additional high performance expansion card with high bandwidths for data collections/ analytics and communication.
Nuvo-6108GC-IGN comes with sophisticated power design to handle heavy power consumption and power transient of a 250W GPU. Furthermore, to have reliable GPU performance for industrial environments, Nuvo-6108GC series utilizes Neousys' patented design*, a tuned cold air intake to effectively dissipate the heat generated by GPU. This unique design guarantees operation at 60°C under 100% GPU loading, making Nuvo-6108GC series extremely reliable for demanding field (such as in-vehicle condition) applications.
The new Nuvo-6108GC-IGN in-vehicle GPU computer features built-in ignition power control, and two of its three 2.5" drives come with Neousys' patented easy-swap trays for simple HDD/ SSD replacement.
- Supports Intel® Xeon® E3 v5 or 6th-Gen Core™ i7/ i5 LGA1151 CPU
- Supports up to an NVIDIA RTX 3070 graphics card
- Patented thermal design for -25 °C to 60 °C rugged operation*
- Two x8, Gen3 PCIe slots for add-on cards
- Dual GbE ports and four USB 3.1 Gen1 ports
- Three 2.5" SATA hard drives with RAID 0/ 1/ 5 support
- Patented easy-swap trays* for HDD replacement
- Automatic temperature sensing and fan control
- Patented damping brackets* to withstand 1 Grms vibration
- Built-in ignition control
Specifications
| System Core | |
|---|---|
| Processor | Supports Intel® Xeon® E3 V5 and 6th-Gen Core™ LGA 1151 CPU -Intel® Xeon® Processor E3-1275 v5 (8M Cache, 3.6/ 4.0 GHz)* -Intel® Xeon® Processor E3-1268L v5 (8M Cache, 2.4/ 3.4 GHz) -Intel® Core™ i7-6700 (8M Cache, 3.4/ 4.0 GHz)* -Intel® Core™ i5-6500 (6M Cache, 3.2/ 3.6 GHz)* -Intel® Core™ i7-6700TE (8M Cache, 2.4/ 3.4 GHz) -Intel® Core™ i5-6500TE (6M Cache, 2.3/ 3.3 GHz) |
| Memory | Up to 32 GB ECC/ non-ECC DDR4-2133 |
| Graphics | Independent GPU via x16 PEG port, or integrated Intel® HD 530 controller |
| Chipset | Intel® C236 Platform Controller Hub |
| I/O Interface | |
|---|---|
| Ethernet | 1x Gigabit Ethernet port by Intel I219-LM 1x Gigabit Ethernet port by Intel I210-IT |
| Native Video Port | 2x DVI-D connectors for DVI outputs,supporting 1920x1200 resolution |
| Serial Port | 2x Software-programmable RS-232/ 422/ 485 ports |
| USB | 4x USB 3.1 Gen1 ports |
| Audio | 1x Speaker-out |
| Expansion Bus/ Internal I/O Interface | |
|---|---|
| PCI Express | 1x PCIe x16 slot @ Gen3, 16-lanes PCIE signals for GPU 2x PCIe x8 slot @ Gen3, 4-lanes PCIE signals |
| M.2 | 1x M.2 B key socket for 3G/4G options with SIM socket |
| mini-PCIe | 1x full-size mini PCI express socket |
| Remote Ctrl. & Status Output | 1x 2x6-pin 2.0mm pin-header connector for remote on/off control and status LED output |
| Storage Interface | |
|---|---|
| SATA | 2x easy-swap HDD trays for 2.5" HDD/SSD installation 1x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1/ 5 |
| Power Supply | |
|---|---|
| DC Input | 24 VDC |
| Input Connector | 3-pin pluggable terminal block for DC input (IGN/ GND/ V+) |
| Mechanical | |
|---|---|
| Dimension | 178 mm (W) x 360 mm (D) x 174 mm (H) |
| Weight | 4.7 kg (incl. CPU, GPU, memory and HDD) |
| Mounting | Wall-mounting with damping brackets |
| Environmental | |
|---|---|
| Operating Temperature | -25°C ~ 60°C with 100% CPU/GPU loading */** |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ GPU, fan and HDD), according to IEC60068-2-64) |
| Shock | - |
| EMC | CE/ FCC Class A, according to EN 55022, EN 55024 & EN 55032 |
* The CPU and GPU loading are applied using Passmark® BurnInTest 8.0 with 35 TDP CPU. Operating Temperature degrades with higher TDP CPU. For detail testing criteria, please contact Neousys Technology
** For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.
