Nuvo-5608VR series
Intel® 6th-Gen Core™ i7/i5 fanless mobile surveillance system with 8x PoE+, DIO, CAN Bus, 2x 3.5" HDD(RAID 0/1)
Introduction

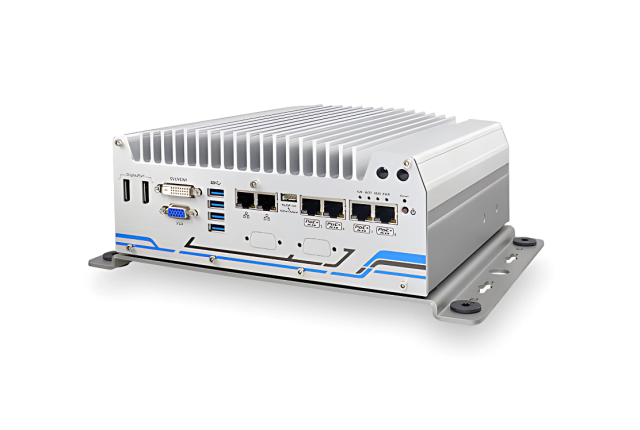

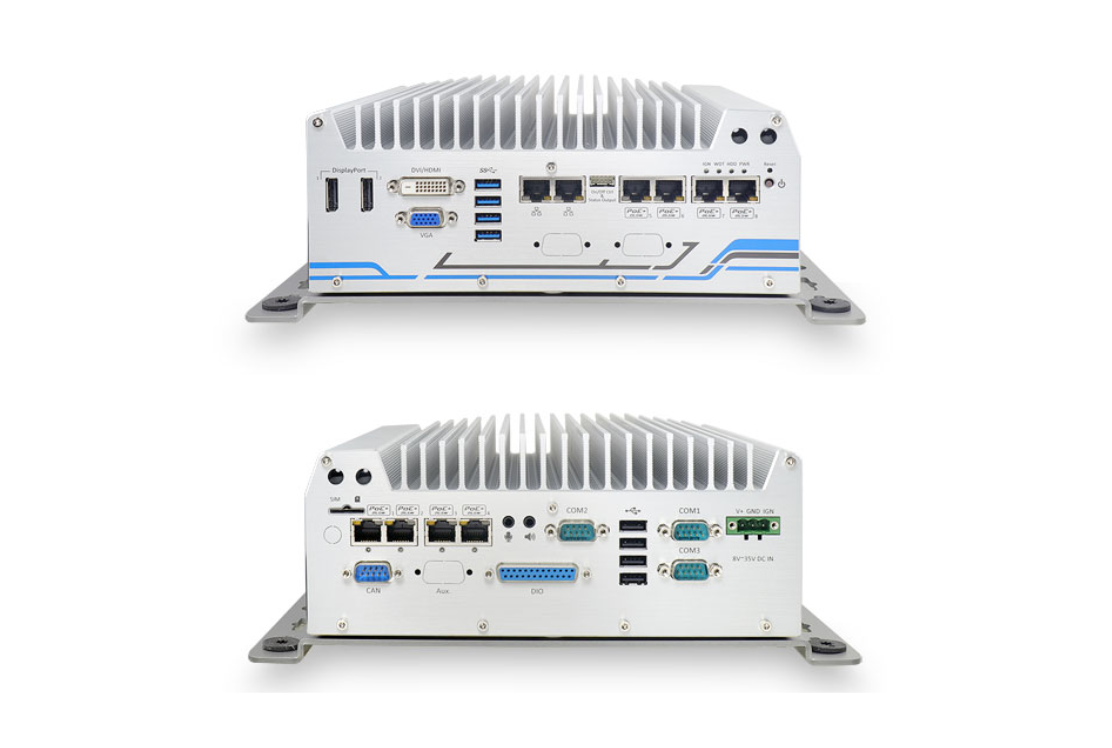

Nuvo-5608VR is Neousys' latest fanless mobile surveillance system designed for real-time video analysis and streaming. It incorporates 6th-Gen Core™ i CPU, IP camera connectivity and massive storage capacity for emerging intelligent surveillance/ security applications.
Featuring eight Gigabit PoE+ ports, Nuvo-5608VR provides sufficient bandwidth to collect high-definition video streams from IP cameras, while its 6th-Gen Core™ i7 CPU is capable of performing real-time video analytics. It accommodates two 3.5" hard drives with RAID 0/1 configuration to support more than 24 TB storage capacity for recording 8-CH, 1080p @H.264 video for over 3 months.
Neousys' patented damping-bracket is shipped with Nuvo-5608VR to protect the system against vibration in harsh mobile environmental conditions.
Being a rugged mobile surveillance platform, Nuvo-5608VR is equipped with dedicated HDD heat-spreaders to maintain adequate HDD operating temperature and along with extra features such as DIO, CAN bus and ignition control, Nuvo-5608VR is the perfect fit for both stationary and mobile surveillance applications.
- Supports Intel® 6th-Gen Core™ i7/ i5/ i3 LGA1151 socket-type CPU
- 8x 802.3at PoE+ ports and 2x GbE ports
- 2x 3.5" HDD accommodation, support RAID 0/1 with over 24 TB capacity
- Dedicated HDD heat-spreader for optimized thermal performance
- 4x full-size mini-PCIe sockets with SIM support
- 4-CH isolated DI and 4-CH isolated DO
- 1x CAN 2.0 port
- 8V to 35V DC input with built-in ignition power control
- Patented damping brackets to withstand 1 Grms vibration
Specifications
| System Core | |
|---|---|
| Processor | Supports 6th-Gen Intel® Core™ i7/ i5/ i3 LGA1151 CPU Intel® Core™ i7-6700 (8M Cache,3.4/ 4.0 GHz, 65W TDP) Intel® Core™ i5-6500 (6M Cache, 3.2/ 3.6 GHz, 65W TDP) Intel® Core™ i3-6100 (3M Cache, 3.7 GHz, 51W TDP) Intel® Core™ i7-6700TE (8M Cache, 2.4/ 3.4 GHz, 35W TDP) Intel® Core™ i5-6500TE (6M Cache, 2.3/ 3.3 GHz, 35W TDP) Intel® Core™ i3-6100TE (4M Cache, 2.7 GHz, 35W TDP) |
| Chipset | Intel® Q170 Platform Controller Hub |
| Graphics | Integrated Intel® HD Graphics 530 |
| Memory | Up to 32 GB DDR4-2133 SDRAM (two SO-DIMM slots) |
| AMT | Supports AMT 11.0 |
| TPM | Supports TPM 2.0 |
| I/O Interface | |
|---|---|
| Ethernet | 2x Gigabit Ethernet ports by Intel® I219 and I210 |
| POE+ | 8x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210, 120W total power budget* |
| USB | 4x USB 3.1 Gen1 ports via native XHCI controller 4x USB 2.0 ports |
| Video Port | 1x stacked VGA + DVI-D connector 2x DisplayPort connectors, supporting 4K2K resolution |
| Serial Port | 2x software-programmable RS-232/ 422/ 485 ports (COM1 & COM3) 1x RS-232 port (COM2) |
| Isolated DIO | 4x isolated DI and 4x isolated DO |
| CAN | 1x CAN 2.0 port |
| Audio | 1x mic-in and 1x speaker-out |
| Storage Interface | |
|---|---|
| SATA HDD | 2x internal SATA port for 3.5” HDD installation, supporting RAID 0/ 1 |
| mSATA | 1x full-size mSATA port (mux with mini-PCIe) |
| Expansion Bus | |
|---|---|
| Mini PCI-E | 1x full-size mini-PCIe socket with panel-accessible SIM socket 1x full-size mini-PCIe socket with internal SIM socket (mux with mSATA) 2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8V to 35V DC input |
| Remote Ctrl. & Status Output |
1x 10-pin (2x5) wafer connector for remote on/off control and status LED output |
| Mechanical | |
|---|---|
| Dimension | 240 mm (W) x 225 mm (D) x 98 mm (H) |
| Weight | 3.5 kg |
| Mounting | Neousys' patented damping bracket |
| Environmental | |
|---|---|
| Operating Temperature | -25°C ~ 70°C (with mSATA/SSD) ** -10°C ~ 60°C (with 3.5” HDD) **/*** |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ HDD and damping bracket installed, according to IEC60068-2-64) |
| Shock | Operating, 30 Grms, Half-sine 11 ms Duration (w/ HDD and damping bracket installed, according to IEC60068-2-27) |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55024 |
* The total power budget for Nuvo-5608VR is related to input voltage. 120W total budget is available with 24 VDC input. When 12 VDC input is applied, the total power budget is limited to 100W
*** Operating temperature is verified with 100% CPU loading and 100% HDD loading applied using Passmark® BurnInTest 8.0. For detail testing criteria, please contact Neousys Technology.
***Depending on the HDD selected, users may encounter performance degradation in sequential disk write at low/high ambient temperature. No data integrity issue was observed in -10°C ~ 60°C operating temperature range
